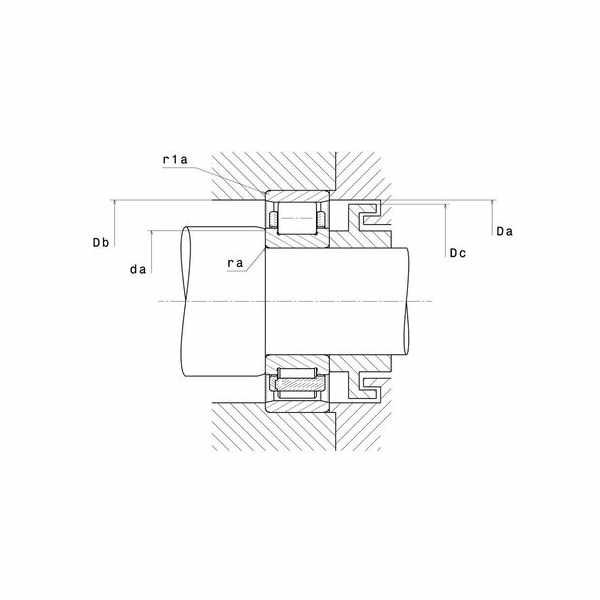

| r1a - Max fillet radius | 3 mm | ||
| Dc max - Max outer ring GO diameter | 258 mm | ||
| Da max - Max shoulder diameter OR | 284 mm | ||
| BSF - Characteristic rolling element frequency | 5,318 Hz | ||
| BPFI - Characteristic inner ring frequency | 8,273 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 2300 tr/min | ||
| Cu - Fatigue limit load | 72 kN | ||
| C - Dynamic load | 685 kN | ||

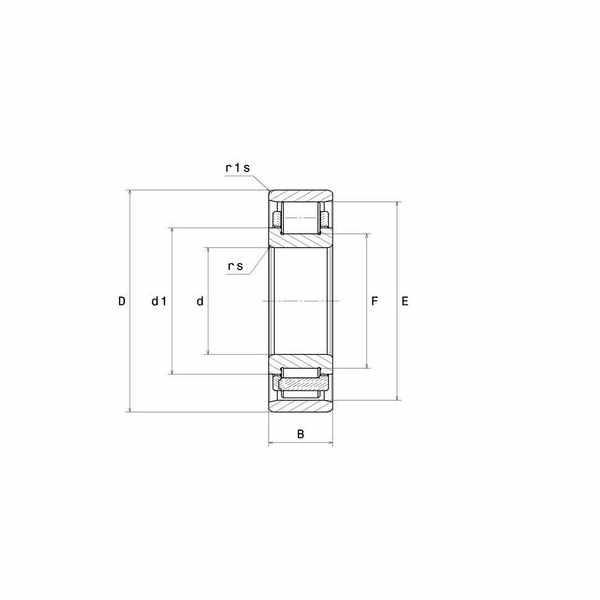

| r1s - Min fillet radius | 4 mm | ||
| d1 - IR flange outer diameter | 196 mm | ||
| E - Upper roller diameter | 260 mm |
| ra max - Max fillet radius | 3 mm | ||
| Db min - Small face shoulder min diameter | 264 mm | ||
| da min - Min shoulder diameter IR | 156 mm | ||
| FTF - Characteristic cage frequency | 0,409 Hz | ||
| BPFO - Characteristic outer ring frequency | 5,727 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nlim - Oil lubrication limit speed | 2700 tr/min | ||
| C0 - Static load | 745 kN | ||
| Radial clearance class | CN | ||
| rs - Min fillet radius | 4 mm | ||
| F - Under roller diameter | 180 mm | ||
| Brand | NTN |
