FAG

N320-E-XL-M1 FAG

N320-E-XL-M1-1 N320-E-XL-M1-2
N320-E-XL-M1-2 N320-E-XL-M1-3

FAG N320-E-XL-M1

0192188000000

100mm x 215mm x 47mm

£742.78 £967.82 -23%
13 pcs. with 1 to 3 days delivery to United Kingdom

Replaces: N320-E-M1 (FAG)

Specifications

Width 47mm
Inner Diameter 100mm
Outer Diameter 215mm
Weight 8.36Kg

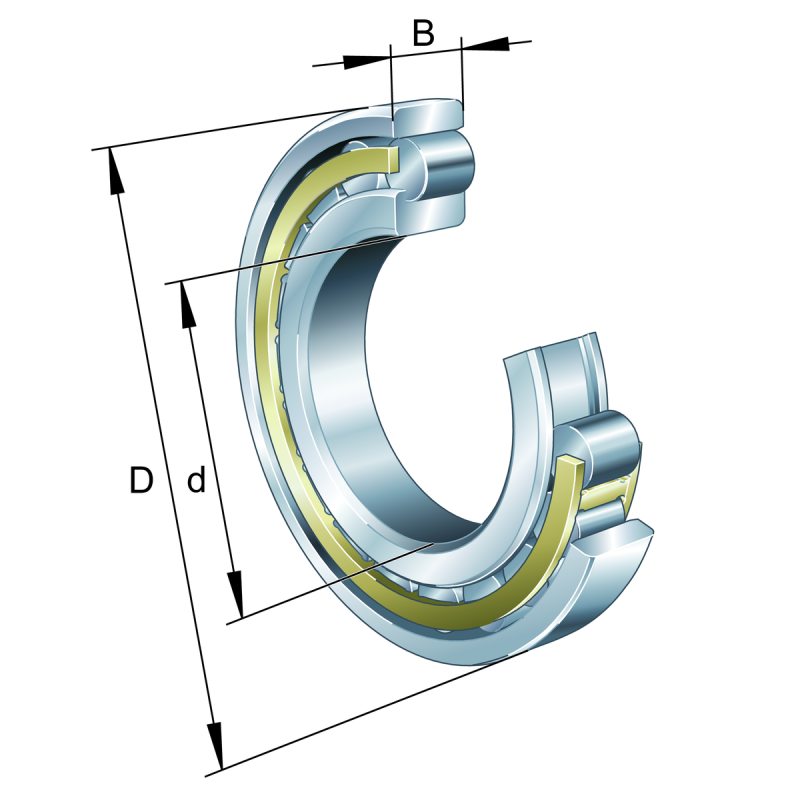

Main Dimensions & Performance Data

Bore diameter d 100 mm
Width B 47 mm
Basic static load rating, radial C0r 425,000
Limiting speed for grease lubrication nG Grease 4,700
Outside diameter D 215 mm
Basic dynamic load rating, radial Cr 450,000
Fatigue load limit, radial Cur 72,000
Limiting speed for oil lubrication nG Oil 5,600

Mounting dimensions

Diameter shaft shoulder da 114 mm
Maximum recess radius ra max 2.50 mm
diameter of housing shoulder Da 201 mm

Dimensions

Minimum chamfer dimension rmin 3 mm
Raceway diameter outer ring E 191.50 mm
Axial displacement s1 1.20 mm

Related products

30320
TIMKEN
£254.01
N320 MC3
NSK
£615.66
NJ320G1
NTN
£1,406.58
7320-B-FP-UO
FAG
£1,307.91
6320-MA-C4
FAG
£509.67
7MC3-6320L1 B C3
NTN
£1,590.90
7320 B
NSK
£376.72
6320-MA-C3
FAG
£389.88

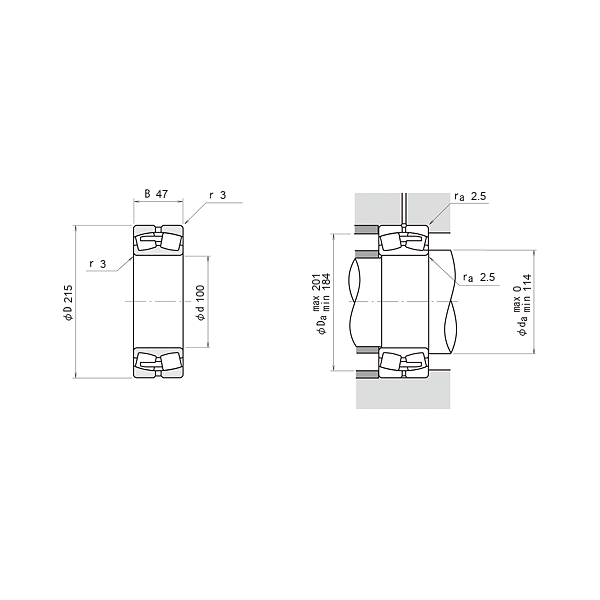

21320CAM E4 C3 S11
