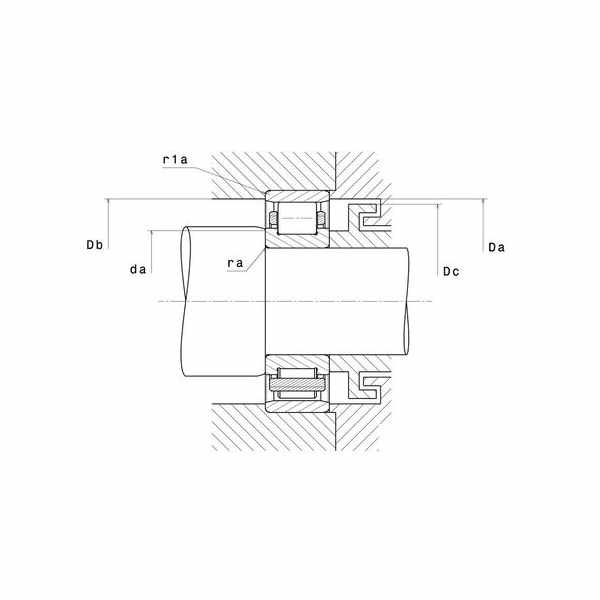

| r1a - Max fillet radius | 2 mm | ||
| Dc max - Max outer ring GO diameter | 151 mm | ||
| Da max - Max shoulder diameter OR | 159 mm | ||
| BSF - Characteristic rolling element frequency | 6,2 Hz | ||
| BPFI - Characteristic inner ring frequency | 9,837 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 3300 tr/min | ||
| Nlim - Mechanical Limit Speed | 4800 tr/min | ||
| Cu - Fatigue limit load | 27 kN | ||
| C - Dynamic load | 205 kN | ||
| r1s - Min fillet radius | 2,1 mm | ||

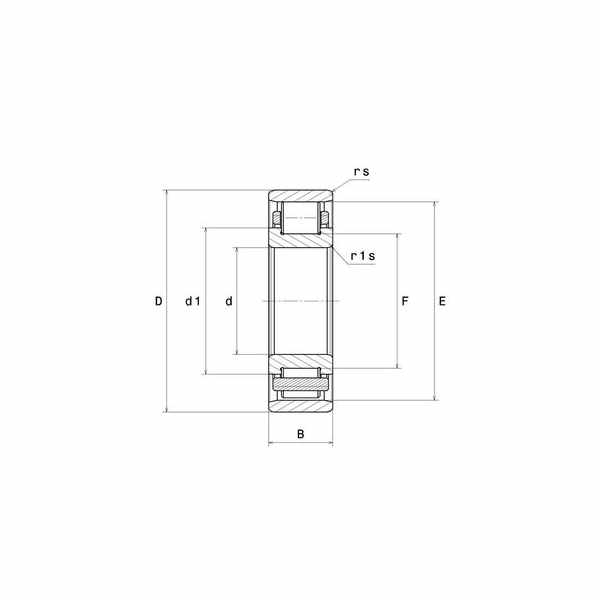

| d1 - IR flange outer diameter | 120,5 mm | ||
| E - Upper roller diameter | 154,5 mm |
| ra max - Max fillet radius | 2 mm | ||
| Db min - Small face shoulder min diameter | 156 mm | ||
| da min - Min shoulder diameter IR | 106 mm | ||
| FTF - Characteristic cage frequency | 0,421 Hz | ||
| BPFO - Characteristic outer ring frequency | 7,163 Hz | ||
| Tmin - Min operating temperature | -20 °C | ||
| Nlim - Oil lubrication limit speed | 4000 tr/min | ||
| Nref - Reference thermal speed | 3800 tr/min | ||
| C0 - Static load | 241 kN | ||
| Radial clearance class | CN | ||
| rs - Min fillet radius | 2,1 mm | ||
| F - Under roller diameter | 112,5 mm | ||
| Brand | SNR |
