| Brand | snr | ||
| mass | 0,74 kg | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 22 kN | ||

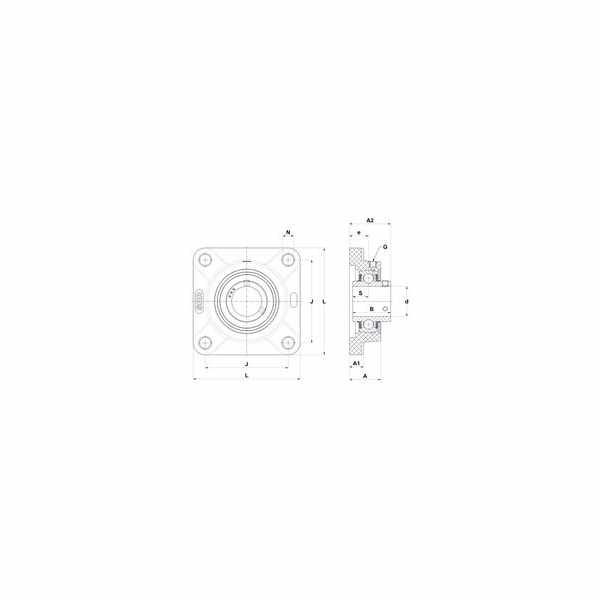

| N - Mounting hole dimension | 13 mm | ||
| J - Mounting holes distance | 92 mm | ||
| e - Distance mounting surface to bearing center | 21,5 mm | ||
| B - Width of Inner Ring | 42,9 mm | ||
| A1 - Housing foot height / flange height | 15,5 mm |
| Recommended tightening torque for set screw | 8,3 N-m | ||
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 12,3 kN | ||
| S - Distance front side/bearing centre | 17,5 mm | ||
| L - Housing width / diameter | 118 mm | ||
| G - Grease fitting | 1/4"-28 | ||
| d - Shaft diameter | 31,75 mm | ||
| A2 - Total height from mounting surface | 46,9 mm | ||
| A - Housing height | 34,8 mm |
