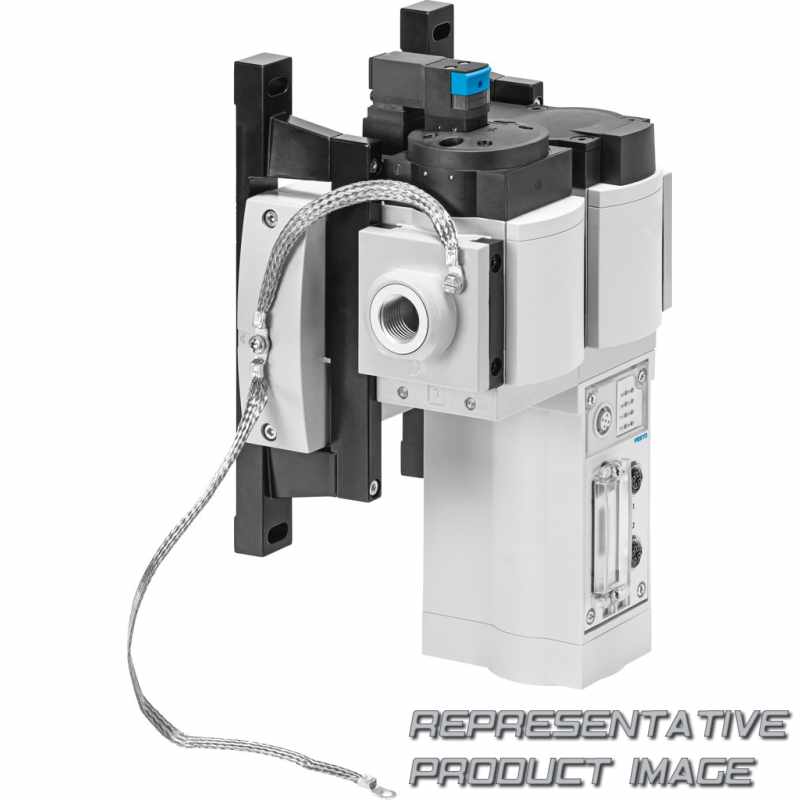

FESTO 3990296 service unit combination

Name: 3990296 FESTO
Brand: FESTO
SKU: 672204-en-gbp
Price: 3238.54 GBP
Availability: SoldOut

MSE6-E2M-5000-FB36-AGD

£3,238.54

Limited stock only available on quotation

Specifications

Pneumatic connection	G1/2
Weight	3.30Kg

Accuracy in ± % FS		3 %FS
Start value for pressure measuring range		0 psi
End value for flow rate measuring range		5.000 l/min
Displayable units		kPa l l/min m3 mbar psi scf scfm
Operating voltage DC load voltage		18 V ... 26,4 V
Field bus interface		2x socket, M12x1, 4-pin, D-coded
Material covering		PA-reinforced
Material seals		NBR
Pneumatic connection, port 1		G1/2
Product weight		3.300 g
Degree of protection		IP65 With plug socket
Storage temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		RCM trademark
Operating pressure		3,5 bar ... 10 bar
Mounting position		Horizontal +/-5°
Size		6

End value for pressure measuring range		203 psi
Accuracy of flow rate		± (3% o.m.v. + 0.3% FS)
Start value for flow rate measuring range		50 l/min
Reverse polarity protection		For operating voltage connections
Operating voltage range DC electronics/sensors		18 V ... 30 V
Material cover		PA-reinforced
Material housing		Die-cast aluminium
Pneumatic connection, port 2		G1/2
Electrical connection		4-pin M18 Plugs
Ambient temperature		0 °C ... 50 °C
Media temperature		0 °C ... 50 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation not possible
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
KC mark		KC-EMV
Standard nominal flow rate		4.500 l/min
Valve function		2/2 open, single solenoid
Series		MSE
