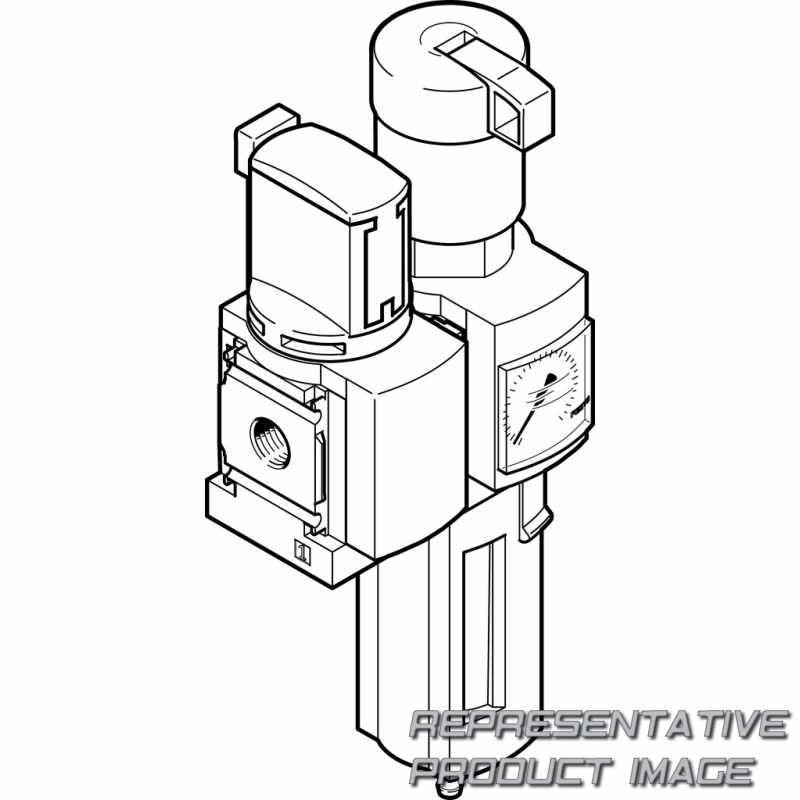

FESTO 8042672 service unit combination

Name: 8042672 FESTO
Brand: FESTO
SKU: 664001-en-gbp
Price: 174.84 GBP
Availability: InStock

MSB6-1/2:C3:J120-WP

£174.84

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MSB)	Service unit component MS series
Size (6)	Grid dimension 62 mm
Thread type	Standard
Pneumatic connection (1/2)	Female thread G1/2
Function	FRC

Service unit component equipment (:c3:j120-wp)	:c3:j120-wp
Type of mounting (WP)	Mounting bracket basic design
EU certification	None
UL certification	None
Flow direction	Flow direction from left to right

Material bowl		PC
Note on materials		RoHS-compliant
Pneumatic connection, port 2		G1/2
Type of mounting		With accessories
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:4]
Storage temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Pressure regulation range		0,5 bar ... 7 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Bowl guard		Plastic bowl guard
Design		On/off valve Filter regulator with pressure gauge
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent can be closed with accessories
Size		6

Material housing		Die-cast aluminium
Pneumatic connection, port 3		G1/2
Pneumatic connection, port 1		G1/2
Product weight		1.100 g
Media temperature		-10 °C ... 60 °C
Suitable for use with food		See supplementary material information
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Standard nominal flow rate		5.500 l/min
Operating pressure		0,8 bar ... 18 bar
Symbol		00991755
Controller function		Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Condensate drain		Manually rotating
Mounting position		Vertical +/-5°
Series		MS
