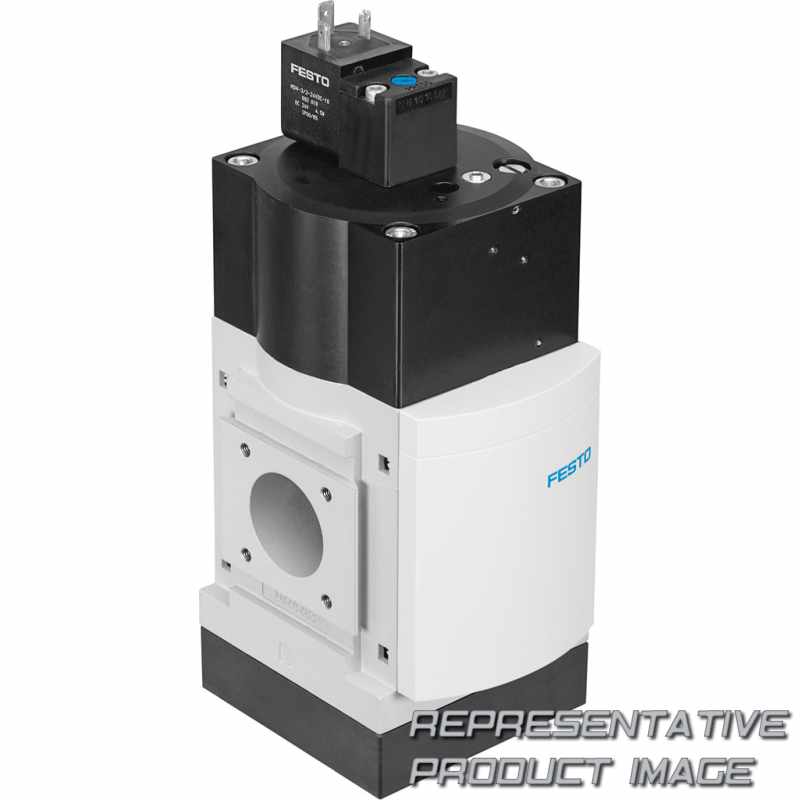

FESTO 570737 soft start/quick exhaust valve

Name: 570737 FESTO
Brand: FESTO
SKU: 671560-en-gbp
Price: 672.98 GBP
Availability: InStock

MS9-SV-G-C-V24-S-VS

£672.98

4 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (9)	Grid dimension 90 mm
Function (SV)	Soft-start/quick exhaust valve
Pneumatic connection (G)	Module without connecting thread, without sub-base
Performance Level (C)	Category 1, 1-channel to ISO 13849-1

Supply voltage (V24)	24 V DC (connection pattern to EN 175301)
Silencer (S)	Silencer
Pressure gauge alternatives (VS)	Cover plate
Alternative pressure gauge scale	MS pressure gauge

Material underneath cover		PA
Material piston slide		Brass
Material housing		Die-cast aluminium
Pneumatic connection, port 3		G1 1 NPT
Product weight		3.200 g
Type of mounting		In-line installation With accessories Either:
Shock resistance		Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Ambient temperature		0 °C ... 60 °C
Degree of protection		IP65
Note on materials		RoHS-compliant
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Duty cycle		100%
Standard nominal flow rate		8.300 l/min ... 16.550 l/min
Valve function		3/2-way, closed, monostable Soft-start function
Type of piloting		Pilot actuated
Manual override		None
Sealing principle		Soft
Design		Piston gate valve
Safety function		Exhaust
Size		9

Material cover		Wrought aluminium alloy
Material seals		NBR
Electrical connection		Type A Plugs To EN 175301-803 Square design
Pressure gauge connection		G1/8 G1/4
Mounting position		optional
Vibration resistance		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Storage temperature		0 °C ... 60 °C
Media temperature		0 °C ... 60 °C
Sound pressure level		93 dB(A)
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 8.4 W
Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)		19.730 l/min ... 21.720 l/min
Operating pressure		3,5 bar ... 16 bar

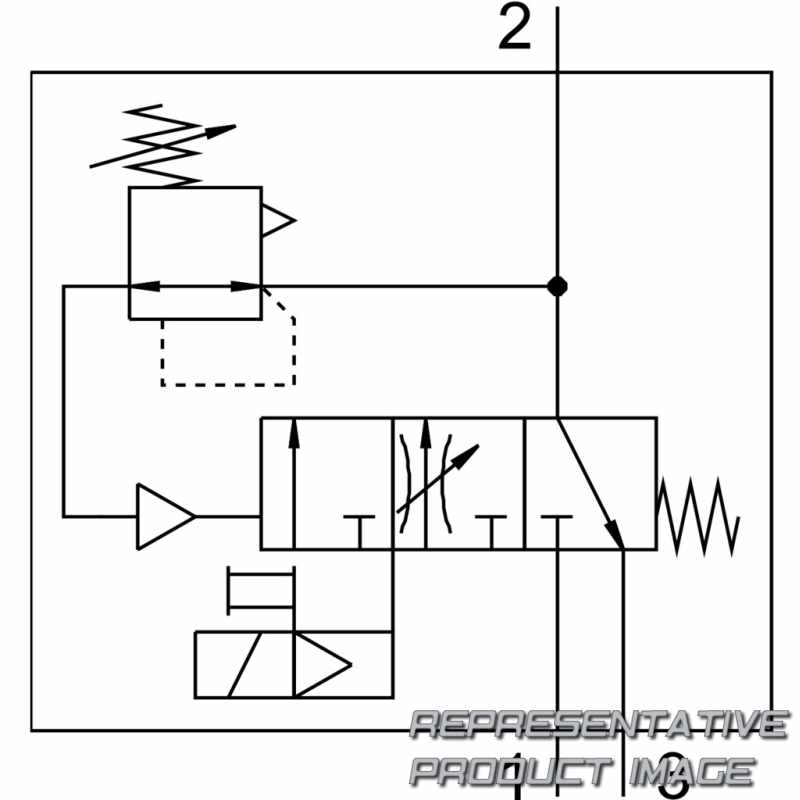

Symbol		00995240
Type of reset		Mechanical spring
Exhaust-air function		Without flow control option
Type of actuation		Electric
Performance Level (PL)		Exhausting/up to category 1, performance level c
Grid dimension		90 mm
Series		MS
