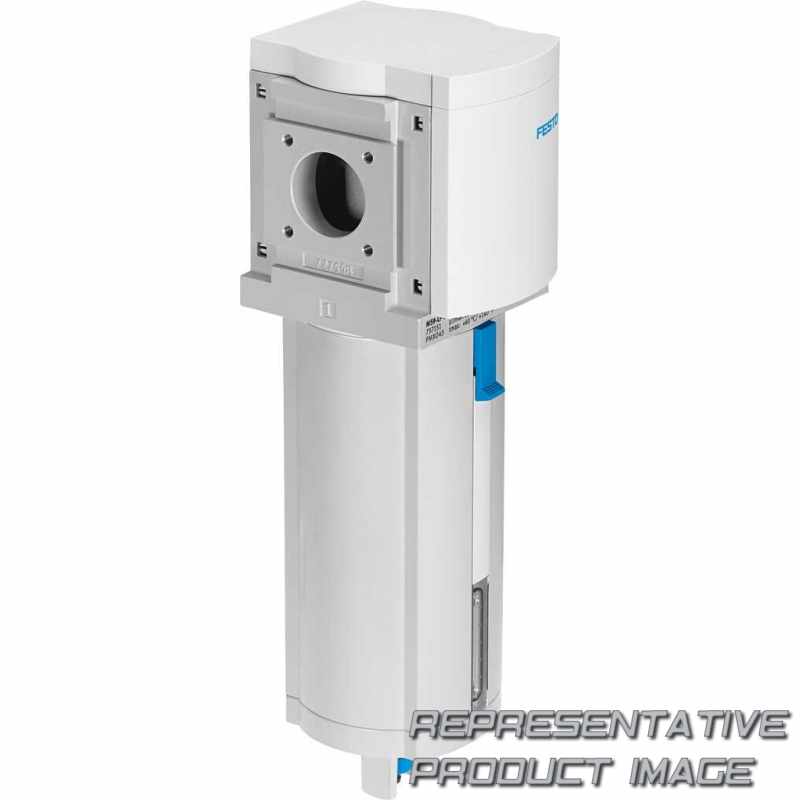

FESTO 564106 filter

Name: 564106 FESTO
Brand: FESTO
SKU: 663121-en-gbp
Price: 192.27 GBP
Availability: InStock

MS9-LF-G-EUM

£192.27

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (9)	Grid dimension 90 mm
Function (LF)	Filter
Pneumatic connection (G)	Module without connecting thread, without sub-base
Grade of filtration [μm] (E)	40 µm

Bowl type (U)	Aluminium
Condensate drain (M)	Manually
Type of mounting	Without mounting bracket
UL certification	None
Flow direction	Flow direction from left to right

Material separating plate		POM
Material cup seal		NBR
Material module connector		Die-cast aluminium
Material filter		PE
Material sub-base		Die-cast aluminium
Material filter carrier		POM
Material covering		PA-reinforced
Product weight		2.000 g
Media temperature		-10 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Explosion ambient temperature		-10°C <= Ta <= +60°C
Symbol		00991519
Design		Sintered filter with centrifugal separator
Grade of filtration		40 µm
Series		MS

Material screen		PA
Material bowl		Wrought aluminium alloy
Material housing		Die-cast aluminium
Material mounting bracket		Die-cast aluminium
Note on materials		RoHS-compliant
Material spin disc		POM
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:8:4]
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Operating pressure		0 bar ... 20 bar
Max. condensate volume		220 ml
Condensate drain		Manually rotating
Mounting position		Vertical +/-5°
Size		9
