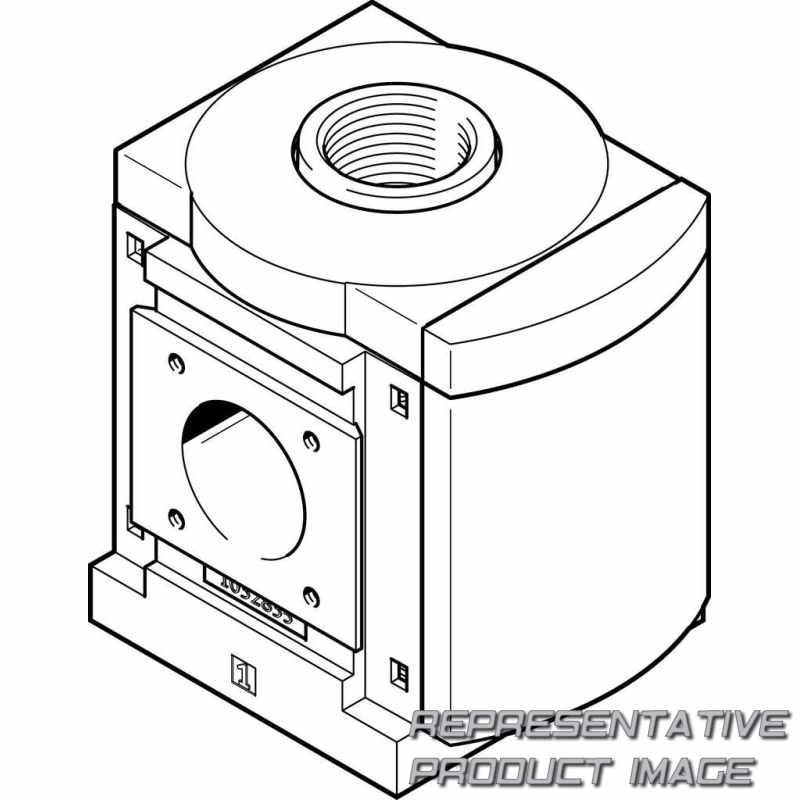

FESTO 564145 branching module

Name: 564145 FESTO
Brand: FESTO
SKU: 675481-en-gbp
Price: 41.33 GBP
Availability: InStock

MS9-FRM-G-VS

£41.33

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (9)	Grid dimension 90 mm
Function (FRM)	Branching module
Pneumatic connection (G)	Module without connecting thread, without sub-base
Pressure gauge alternatives (VS)	Cover plate
Alternative pressure gauge scale	MS pressure gauge

Pressure switch	None
Type of mounting	Without mounting bracket
EU certification	None
UL certification	None
Flow direction	Flow direction from left to right

Material module connector		Die-cast aluminium
Material mounting bracket		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		G1
Type of mounting		Front panel mounting In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible
Operational voltage range DC		0 V ... 125 V
Operating pressure		0 bar ... 20 bar
Design		Branching module
Series		MS

Material housing		Die-cast aluminium
Material sub-base		Die-cast aluminium
Material covering		PA-reinforced
Pneumatic connection, port 3		G1
Product weight		1.000 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Operational voltage range AC		0 V ... 250 V
Symbol		00991510
Mounting position		optional
Size		9
