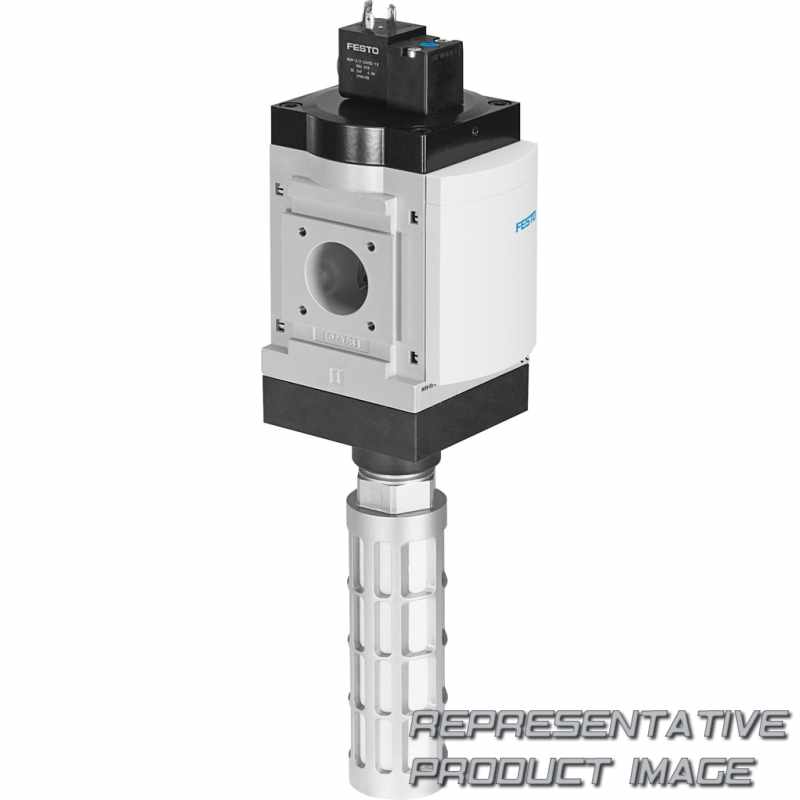

FESTO 562177 filter

Name: 562177 FESTO
Brand: FESTO
SKU: 715147-en-gbp
Price: 365.6 GBP
Availability: InStock

MS9-EE-AGH-V24-S-AG-BAR

£365.60

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (9)	Grid dimension 90 mm
Function (EE)	On/off valve, electric
Pneumatic connection (AGH)	Connecting plate G1 1/2
Supply voltage (V24)	24 V DC (connection pattern to EN 175301)
Silencer (S)	Silencer
Pressure gauge alternatives (AG)	MS pressure gauge

Alternative pressure gauge scale (BAR)	bar
Valve function	Standard
Type of mounting	Without mounting bracket
EU certification	None
UL certification	None
Flow direction	Flow direction from left to right

Material housing		Die-cast aluminium
Material piston slide		POM
Mounting position		optional
Explosion ambient temperature		-10°C <= Ta <= +50°C
Explosion ignition protection type for gas		Ex nA IIC T5 X Gc
ATEX category gas		II 3G
CE mark (see declaration of conformity)		To EU Explosion Protection Directive (ATEX)
Ambient temperature		-10 °C ... 60 °C
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Duty cycle		100%
Standard nominal flow rate		8.000 l/min ... 18.000 l/min
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		Prepared for G1/4 Prepared for G1/8 Red/green scale Via pressure sensor With pressure gauge Via operational status indicator
Type of piloting		Pilot actuated
Manual override		Detenting Non-detenting
Sealing principle		Soft
Design		Piston gate valve
Size		9

Material seals		NBR
Electrical connection		Type A Plugs To DIN EN 175301-803 Square design
Type of mounting		In-line installation With accessories Either:
Explosion ignition protection type for dust		Ex tc IIIC T85°C X Dc IP65
ATEX category dust		II 3D
Explosion protection		Zone 2 (ATEX) Zone 22 (ATEX)
Approval		c UL us - Recognized (OL)
Degree of protection		IP65
Note on materials		RoHS-compliant
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Characteristic coil data		110 V AC: 50 Hz, pick-up power 11.5 VA, holding power 8.9 VA 110 V AC: 60 Hz, pick-up power 9.5 VA, holding power 6.2 VA 230 V AC: 50 Hz, pick-up power 11.5 VA, holding power 9.1 VA 230 V AC: 60 Hz, pick-up power 9.5 VA, holding power 6.4 VA
Standard nominal flow rate 2-3		13.200 l/min ... 14.900 l/min
Operating pressure		3,5 bar ... 16 bar
Valve function		2/2-way, closed, monostable 3/2-way, closed, monostable
Type of reset		Mechanical spring
Exhaust-air function		Without flow control option
Type of actuation		Electric
Grid dimension		90 mm
Series		MS
