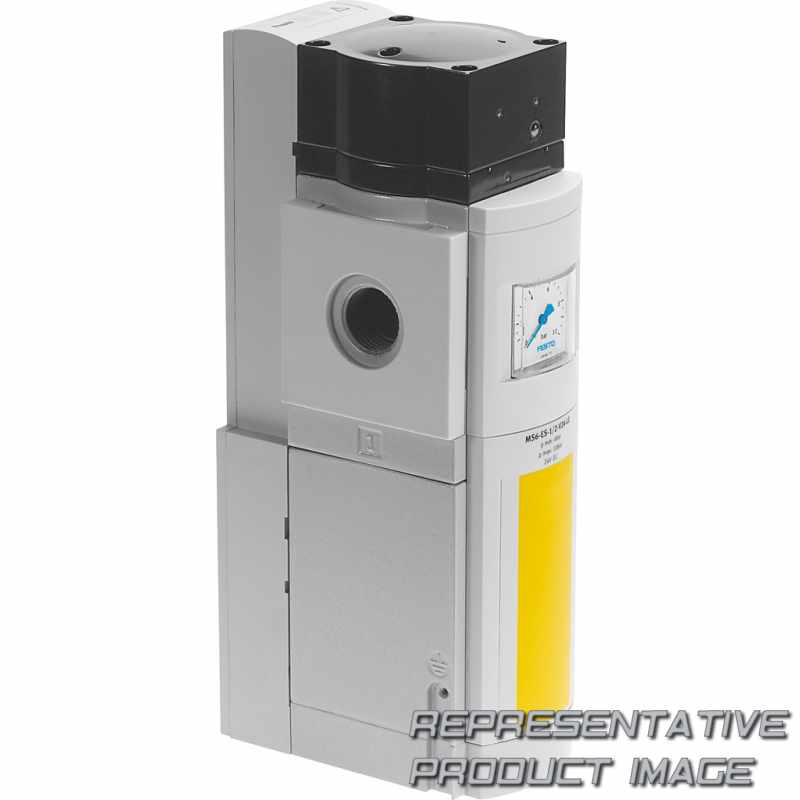

FESTO 548715 soft start/quick exhaust valve

Name: 548715 FESTO
Brand: FESTO
SKU: 662548-en-gbp
Price: 634.56 GBP
Availability: InStock

MS6-SV-1/2-E-10V24-AG

£634.56

7 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (6)	Grid dimension 62 mm
Function (SV)	Soft-start/quick exhaust valve
Pneumatic connection (1/2)	Female thread G1/2
Performance Level (E)	Category 4, 2-channel with self-monitoring to ISO 13849-1
Supply voltage (10V24)	24 V DC, 10 bar, connection pattern to EN 175301
Connection technology	None
Extended sensing	None

Silencer	None
Pressure gauge alternatives (AG)	MS pressure gauge
Alternative pressure gauge scale	MS pressure gauge
Multi-pin plug socket	None
Type of mounting	Without mounting bracket
Tamper protection	None
UL certification	None
Flow direction	Flow direction from left to right

Degree of protection		IP65 With plug socket
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal operating voltage DC		24 V
Duty cycle		100%
Switching time off		40 ms
Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)		9.000 l/min
b value		0,21
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Valve function		3/2-way, closed, monostable Soft-start function
Type of piloting		Pilot actuated
Manual override		None
Position detection principle		Magnetic piston principle
Sealing principle		Soft
Type of actuation		Electric
Design		Piston seat
Performance Level (PL)		Exhausting/up to category 4, performance level e Prevention of unexpected start-up (pressurisation)/up to category 4, performance level e
Safety function		Exhaust Prevention of unexpected start-up (pressurisation)
Size		6
Material piston rod		High-alloy stainless steel
Material housing		Die-cast aluminium
Pneumatic connection, port 3		G1
Pneumatic connection, port 1		G1/2
Mounting position		optional
Suitable for use with food		See supplementary material information
CE mark (see declaration of conformity)		To EU EMC Directive To EC Machinery Directive
Approval		RCM trademark
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Ambient temperature		-10 °C ... 50 °C

Note on materials		RoHS-compliant
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Signal status display		LED Floating contact
Switching time on		130 ms
Max. switching frequency		0,5 Hz
Standard nominal flow rate		4.300 l/min
C value		19,3 l/sbar
Operating pressure		3,5 bar ... 10 bar
Symbol		00995704
Type of reset		Mechanical spring
Conforms to standard		DIN EN ISO 13849-1
Exhaust-air function		Without flow control option
Pilot air supply		Internal
Freedom from overlap		no
Note on forced dynamization		Switching frequency min. 1/month
Safety Integrity Level (SIL)		Exhaust/SIL 3 Prevention of unexpected start-up (pressurisation)/SIL 3
Grid dimension		62 mm
Series		MS
Material seals		NBR
Electrical connection		9-pin Sub-D
Pneumatic connection, port 2		G1/2
Product weight		2.000 g
Type of mounting		In-line installation With accessories Either:
Certificate issuing authority		IFA 1001180
KC mark		KC-EMV
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Storage temperature		-10 °C ... 50 °C
Media temperature		-10 °C ... 50 °C
