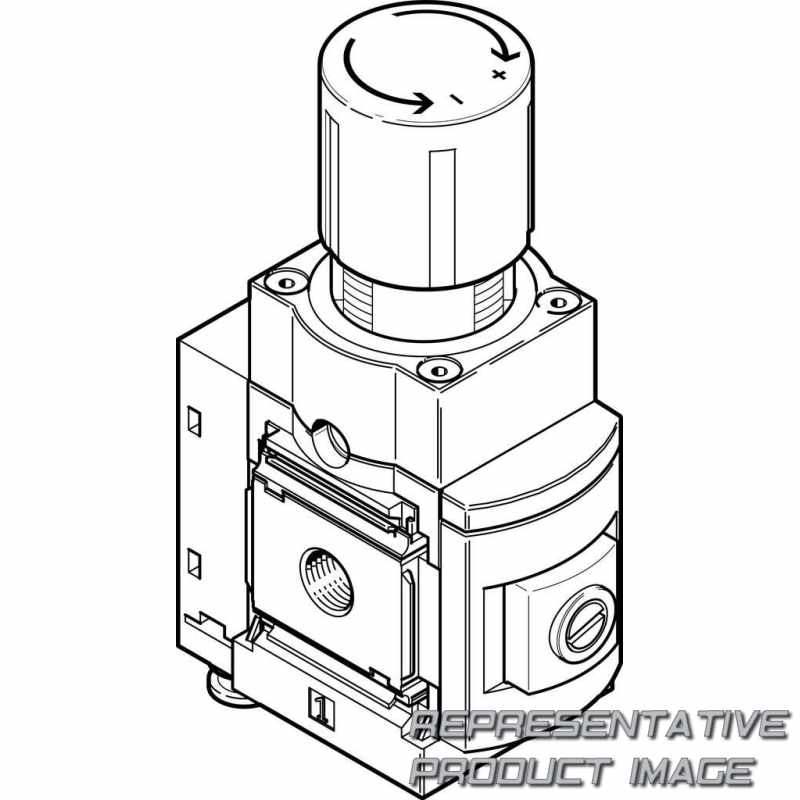

FESTO 534865 precision pressure regulator

Name: 534865 FESTO
Brand: FESTO
SKU: 688675-en-gbp
Price: 274.17 GBP
Availability: InStock

MS6-LRPB-1/2-D2-A8-BD

£274.17

4 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (6)	Grid dimension 62 mm
Function (LRPB)	Precision pressure regulator for manifold installation
Pneumatic connection (1/2)	Female thread G1/2
Pressure regulation range (D2)	0.05 ... 0.7 bar
Pressure gauge alternatives (A8)	Adapter for EN pressure gauge 1/8, without pressure gauge
Rotary knob alternative	None

Alternative mounting position	None
Lockability	None
Alternative pressure outlet (BD)	Angled outlet block QS-8
Type of mounting	Without mounting bracket
EU certification	None
UL certification	None
Outlet direction	Pressure output to the rear

Material housing		Aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 2		G1/2
Type of mounting		Front panel mounting In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
Standard nominal flow rate		≥ 1.600 l/min
Max. pressure hysteresis		0,02 bar
Operating pressure		1 bar ... 14 bar

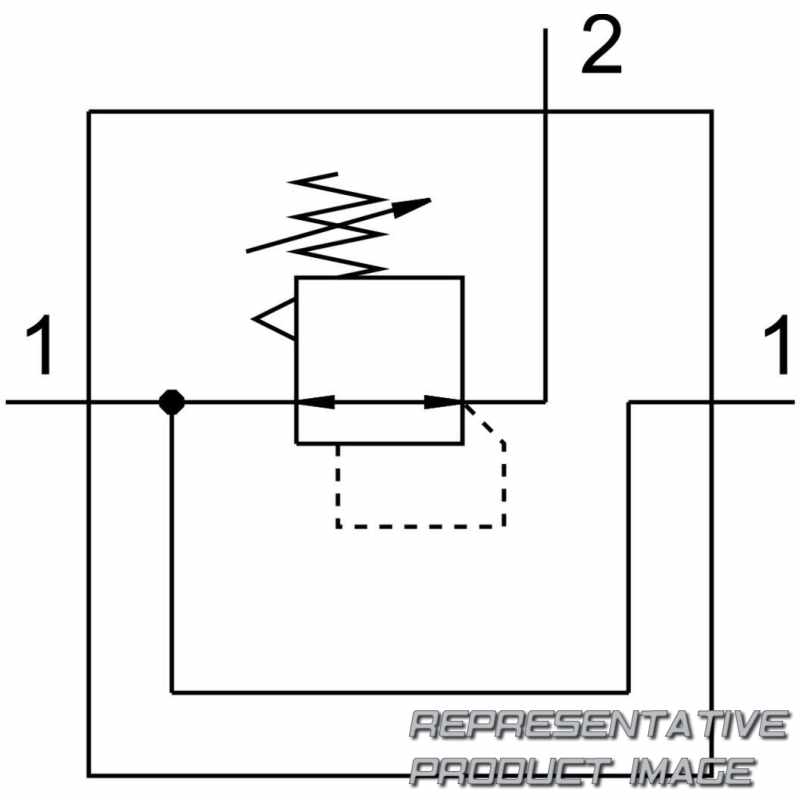

Symbol		00991973
Design		Piloted precision diaphragm control valve
Actuator lock		Rotary knob with detent
Size		6

Material seals		NBR
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		G1/2
Product weight		1.000 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Flow rate of secondary exhaust		≥ 220 l/min
Pressure regulation range		0,05 bar ... 0,7 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		Prepared for G1/8
Controller function		Output pressure constant With secondary venting
Mounting position		optional
Series		MS
