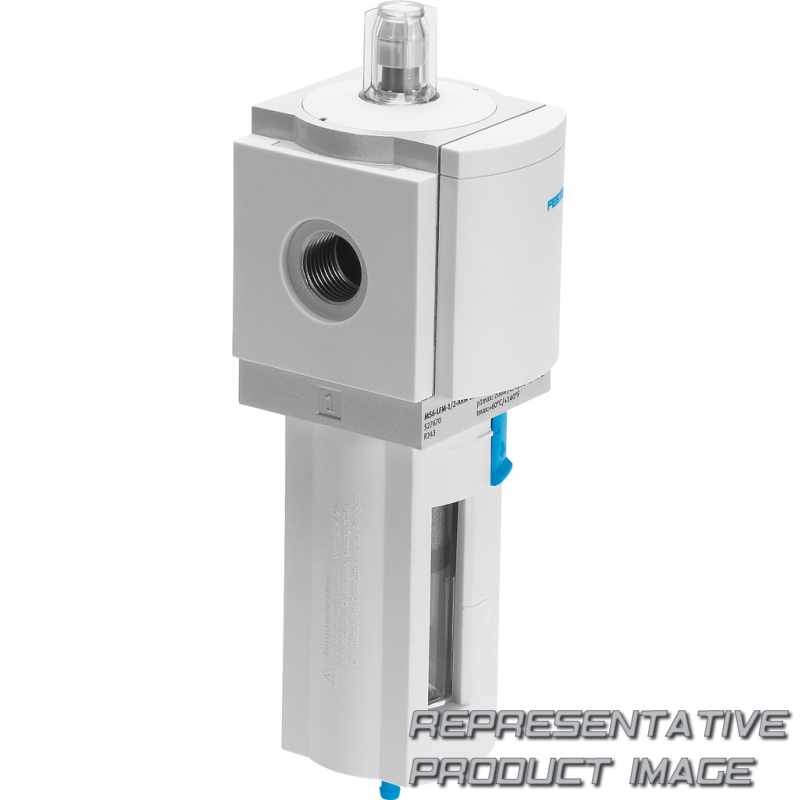

FESTO 536871 micro filter

Name: 536871 FESTO
Brand: FESTO
SKU: 670229-en-gbp
Price: 132.77 GBP
Availability: InStock

MS6-LFM-1/2-ARM-DA

£132.77

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (6)	Grid dimension 62 mm
Function (LFM)	Fine and micro filters
Pneumatic connection (1/2)	Female thread G1/2
Filter design (A)	0.01 µm
Bowl type (R)	Plastic tray with plastic basket
Condensate drain (M)	Manually

Flow rate	Standard
Range of applications	None
Filter change sensing (DA)	Differential pressure display, visual
Type of mounting	Without mounting bracket
EU certification	None
UL certification	None
Flow direction	Flow direction from left to right

Product weight		600 g
Material seals		NBR
Material filter		Borosilicate fibre
Pneumatic connection, port 2		G1/2
Mounting position		Vertical +/-5°
Differential pressure display		Visual display
Storage temperature		-10 °C ... 60 °C
Media temperature		-10 °C ... 60 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Bowl guard		Plastic bowl guard
Filter efficiency		100 %
Max. standard flow rate for clean air class		900 l/min
Operating medium		Compressed air to ISO 8573-1:2010 [6:8:4] Inert gases
Symbol		00991543
Grade of filtration		0,01 µm
Size		6

Note on materials		RoHS-compliant
Material bowl		PC
Material housing		Die-cast aluminium
Pneumatic connection, port 1		G1/2
Type of mounting		In-line installation With accessories Either:
Residual oil content		0,01 mg/m³
Ambient temperature		-10 °C ... 60 °C
Suitable for use with food		See supplementary material information
Corrosion resistance class CRC		2 - Moderate corrosion stress
Max. condensate volume		38 ml
Min. standard flow rate for clean air class		135 l/min
Air purity class at output		Compressed air to ISO 8573-1:2010 [1:7:2]
Operating pressure		0 bar ... 20 bar
Condensate drain		Manually rotating
Design		Fibre filter
Series		MS
