| Material housing | Die-cast aluminium | ||
| Pneumatic connection, port 4 | G1/4 | ||
| Product weight | 60 g | ||
| Media temperature | -10 °C ... 60 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Standard nominal flow rate, outlet downwards | 2.900 l/min | ||
| Standard nominal flow rate in main flow direction 1->2 | 4.050 l/min | ||
| Symbol | 00991510 | ||
| Mounting position | optional |
| Note on materials | RoHS-compliant | ||
| Pneumatic connection, port 3 | G1/4 | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Storage temperature | -10 °C ... 60 °C | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Approval | c UL us - Recognized (OL) | ||
| Standard nominal flow rate, outlet upwards | 3.250 l/min | ||
| Operating pressure | 0 bar ... 14 bar | ||

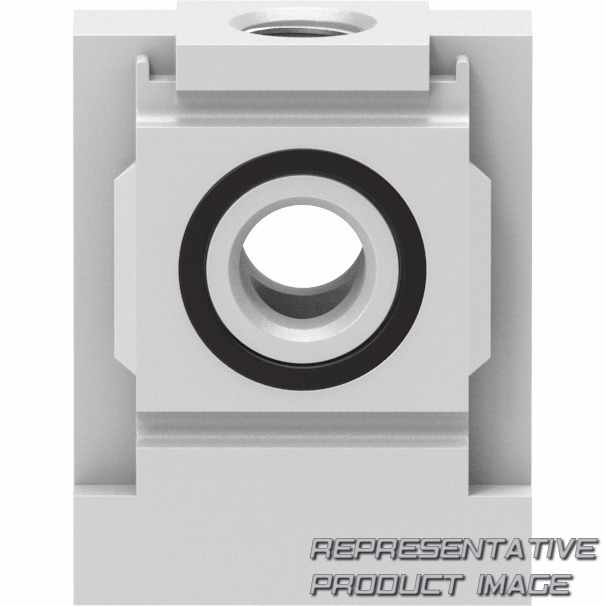

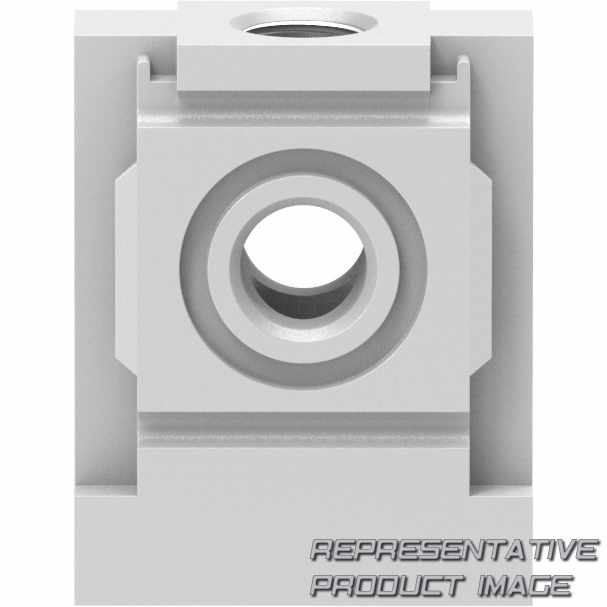

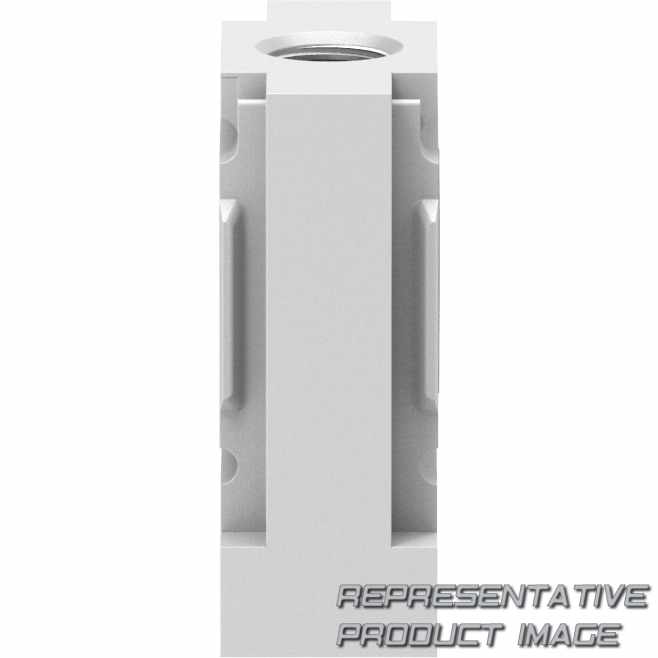

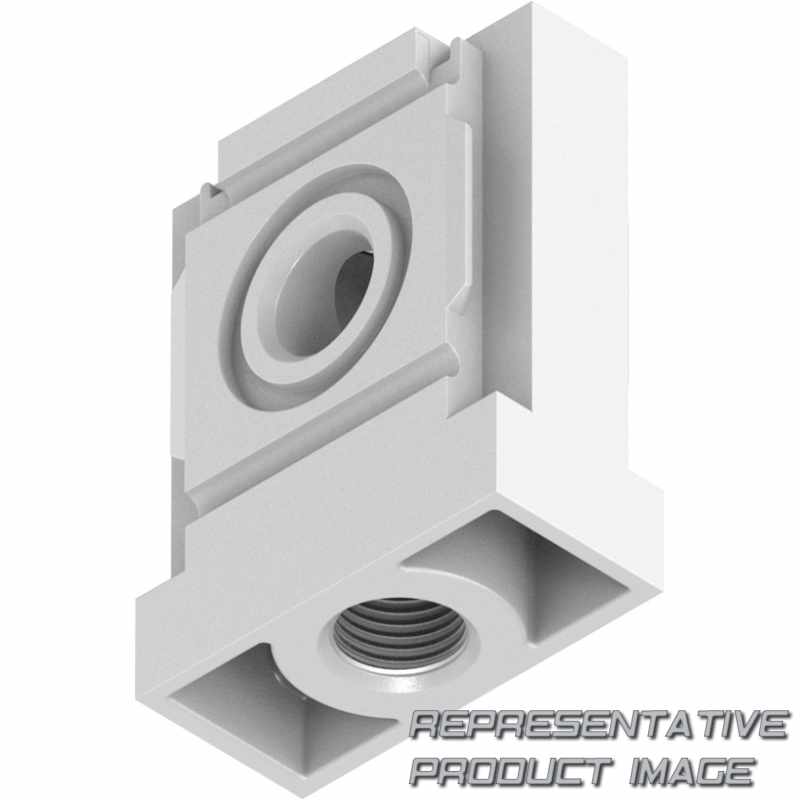

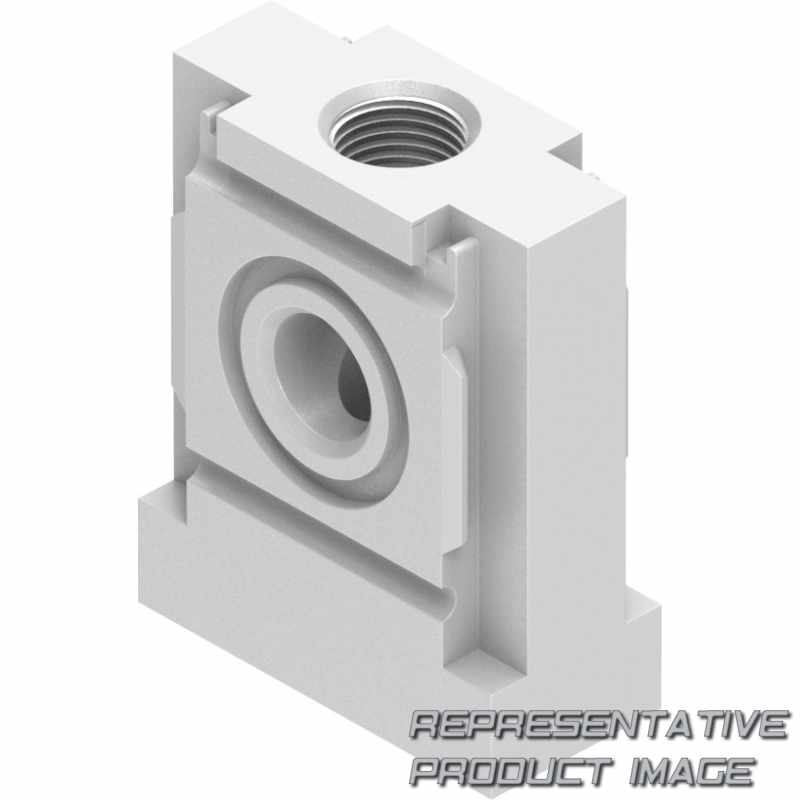

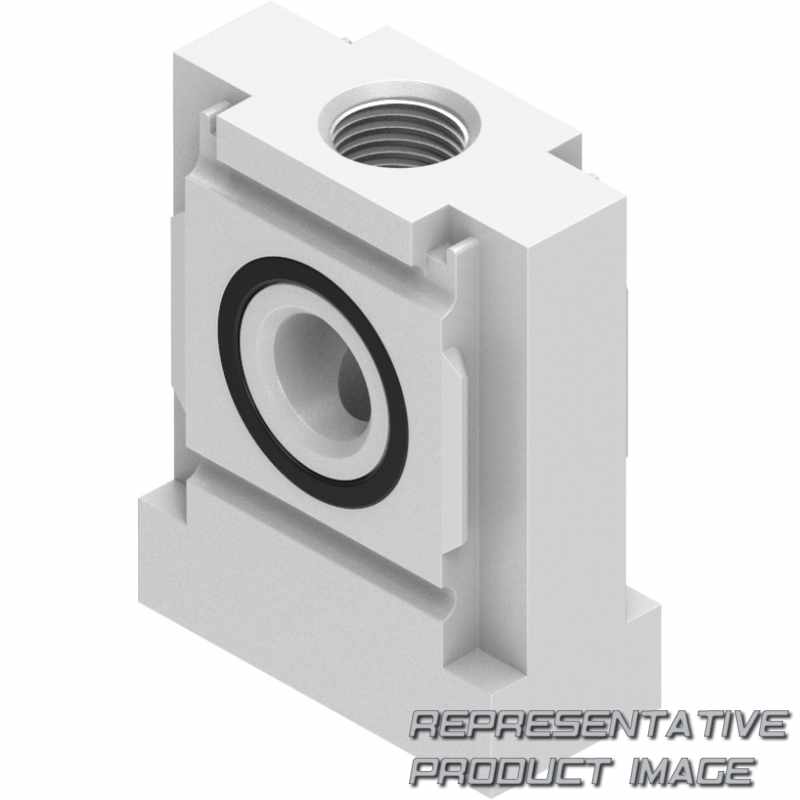

| Design | Branching module |
