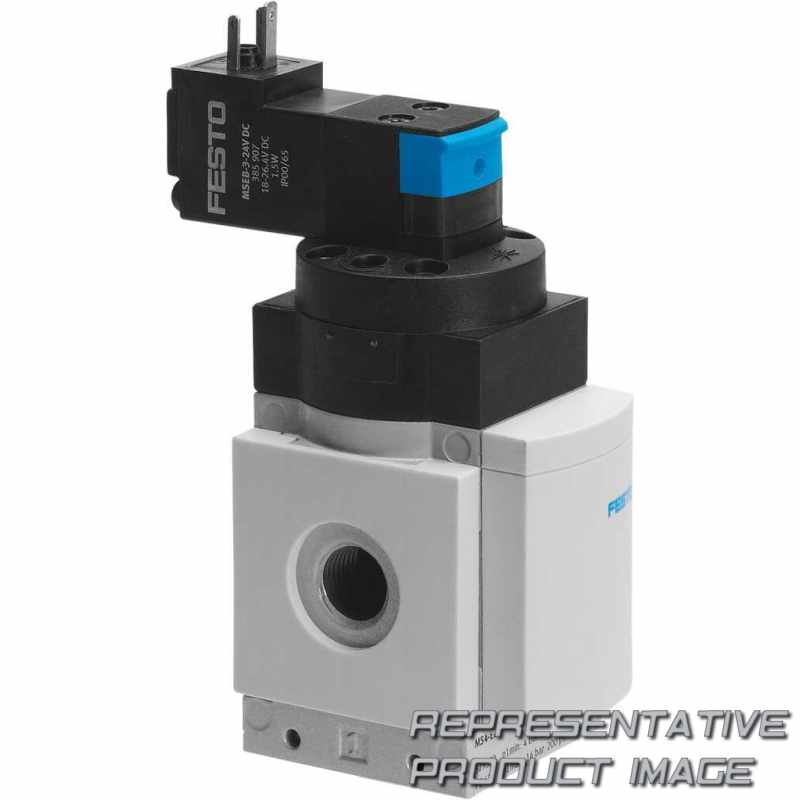

FESTO 527713 filter

Name: 527713 FESTO
Brand: FESTO
SKU: 712773-en-gbp
Price: 169.25 GBP
Availability: InStock

MS4-DE-1/4-V24

£169.25

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (4)	Grid dimension 40 mm
Function (DE)	Soft-start valve, electric
Pneumatic connection (1/4)	Female thread G1/4
Supply voltage (V24)	24 V DC (connection pattern to EN 175301)
Pressure gauge alternatives	None

Alternative pressure gauge scale	MS pressure gauge
Type of mounting	Without mounting bracket
EU certification	None
UL certification	None
Flow direction	Flow direction from left to right

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Signal status display		With accessories
Ambient temperature		-10 °C ... 60 °C
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Explosion ignition protection type for dust		Ex tc IIIC T105°C X Dc IP65
ATEX category dust		II 3D
Explosion protection		Zone 2 (ATEX) Zone 22 (ATEX)
KC mark		KC-EMV
Duty cycle		100%
Operating pressure		4 bar ... 14 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		Prepared for G1/4 Prepared for G1/8 Via pressure sensor With pressure gauge
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Design		Piston seat
Mounting position		optional

Material seals		NBR
Type of mounting		In-line installation With accessories Either:
Product weight		263 g
Degree of protection		IP65
Suitable for use with food		See supplementary material information
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Explosion ambient temperature		-10°C <= Ta <= +60°C
Explosion ignition protection type for gas		Ex nA IIC T4 X Gc
ATEX category gas		II 3G
CE mark (see declaration of conformity)		To EU EMC Directive To EU Explosion Protection Directive (ATEX) To EU Low Voltage Directive
Approval		c UL us - Recognized (OL)
Standard nominal flow rate		1.000 l/min ... 2.000 l/min
Switching position indicator		With accessories
Valve function		2/2
Pilot air supply		Internal
Type of reset		Mechanical spring
Manual override		Detenting Non-detenting
Type of actuation		Electric
