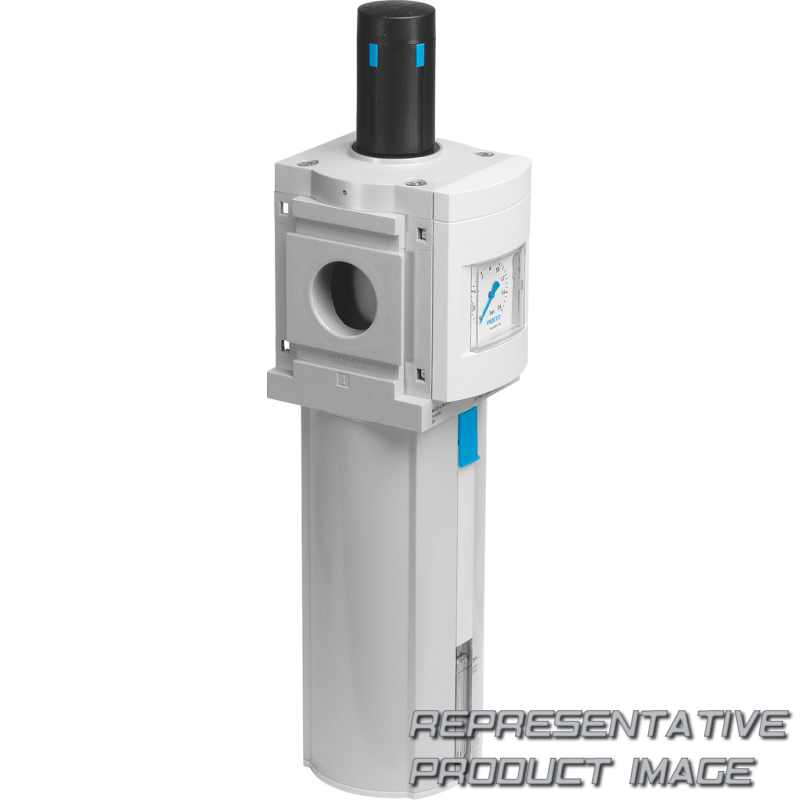

FESTO 537149 filter regulator

Name: 537149 FESTO
Brand: FESTO
SKU: 690549-en-gbp
Price: 689.96 GBP
Availability: InStock

MS12-LFR-G-D7-EUV-LD-AS

£689.96

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (MS)	MS series
Size (12)	Grid dimension 124 mm
Function (LFR)	Filter regulator
Pneumatic connection (G)	Module without connecting thread, without sub-base
Pressure regulation range (D7)	0.5 ... 12 bar
Filter version (E)	40 µm
Bowl (U)	Metal bowl

Condensate drain (V)	Automatic
Pressure gauge alternatives	None
Alternative pressure gauge scale	MS pressure gauge
Rotary knob (LD)	Long rotary knob
Lockability (AS)	Can be locked using accessories
Type of mounting	Without mounting bracket
Flow direction	Flow direction from left to right

Material stabilization disc		POM
Material separating plate		POM
Material membrane		NBR
Material filter		Sintered bronze
Material seals		NBR
Material sight glass metal bowl		PC
Material spin disc		POM
Pneumatic connection, port 2		Internal
Type of mounting		In-line installation Via mounting bracket Either:
Ambient temperature		5 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		12.000 l/min ... 17.000 l/min
Max. pressure hysteresis		0,4 bar
Operating pressure		2 bar ... 12 bar
Symbol		00991587
Controller function		Output pressure constant Via primary pressure compensation With secondary venting With return flow function
Design		Filter regulator with pressure gauge Sintered filter with centrifugal separator With condensate drain With secondary exhausting Modular Piloted diaphragm regulator
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent can be closed with accessories
Size		12

Material valve stem		Wrought aluminium alloy NBR High-alloy stainless steel
Material bowl		Wrought aluminium alloy
Material housing		Die-cast aluminium
Material spring		Spring steel
Material control panel		PA-reinforced POM
Material filter carrier		POM
Material covering		PA
Pneumatic connection, port 1		Internal
Product weight		7.000 g
Media temperature		5 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
Flow rate of secondary exhaust		500 l/min
Pressure regulation range		0,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Bowl guard		Integrated as metal bowl
Max. condensate volume		400 ml
Condensate drain		Fully automatic Manual, non-detenting
Mounting position		Vertical +/-5°
Series		MS
