FESTO 541498 soft start valve

MS12-DE-G-V24

£414.18
available with 7 to 15 days delivery to United States

Specifications

Series (MS) MS series
Size (12) Grid dimension 124 mm
Function (DE) Soft-start valve, electric
Pneumatic connection (G) Module without connecting thread, without sub-base
Supply voltage (V24) 24 V DC (connection pattern to EN 175301)
Pressure gauge alternatives None
Alternative pressure gauge scale MS pressure gauge
Type of mounting Without mounting bracket
Flow direction Flow direction from left to right
Material housing Die-cast aluminium
Pneumatic connection, port 2 Manifold module
Type of mounting In-line installation With accessories Either:
Electrical connection To DIN EN 175301-803 Square design
Ambient temperature -10 °C ... 50 °C
Media temperature -10 °C ... 50 °C
Operating medium Compressed air to ISO 8573-1:2010 [-:-:-]
Duty cycle 100%
Operating pressure 3 bar ... 16 bar
Valve function 2/2
Flow direction Non-reversible
Type of piloting Pilot actuated
Design Piston seat
Mounting position optional
Exhaust-air function With flow control option
Material seals NBR
Pneumatic connection, port 1 Manifold module
Signal status display With accessories
Product weight 3.800 g
Degree of protection IP65
Corrosion resistance class CRC 2 - Moderate corrosion stress
Characteristic coil data 24 V DC: 8.4 W 42 V AC: 50 Hz, pick-up power 14.0 VA, holding power 10.0 VA 42 V AC: 60 Hz, pick-up power 12.0 VA, holding power 7.0 VA
Standard nominal flow rate 25.000 l/min ... 42.000 l/min
Switching position indicator With accessories

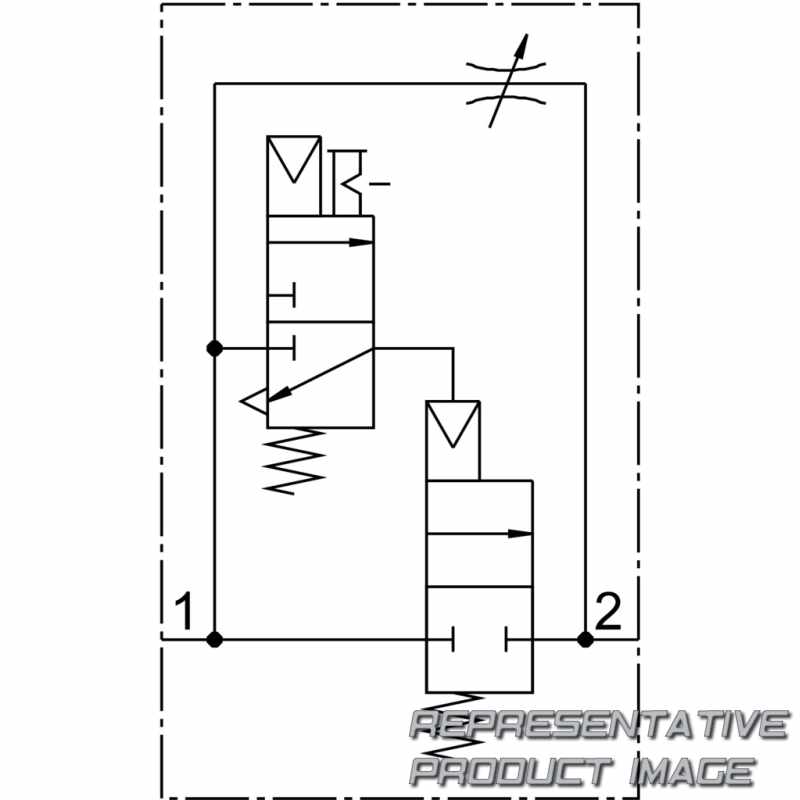

Symbol 00991501
Pilot air supply Internal
Type of reset Mechanical spring
Manual override Detenting Non-detenting
Type of actuation Electric
£414.18
Stock available
Part number 541498
Manufacturer FESTO
