| weight rail (kg) | 5 | ||
| mq - dyn. cross moment capacity (nm) | 4,325 | ||
| m0q - static cross moment capacity (nm) | 7,771 | ||
| c0 - static load capacitiy (n) | 237,000 | ||
| n - lateral fixing hole spacing | 116 | ||
| l2 - interior fixing hole spacing | 70 | ||
| l - carriage length | 172 | ||
| c7 - position of lateral lube hole | 21.50 | ||
| c3 - position of lateral lube hole | 9 | ||
| b2 - distance between locating faces | 43.50 | ||
| a - system height in mm | 70 | ||
| Preload class | v2 | ||
| buildsize | 55 | ||

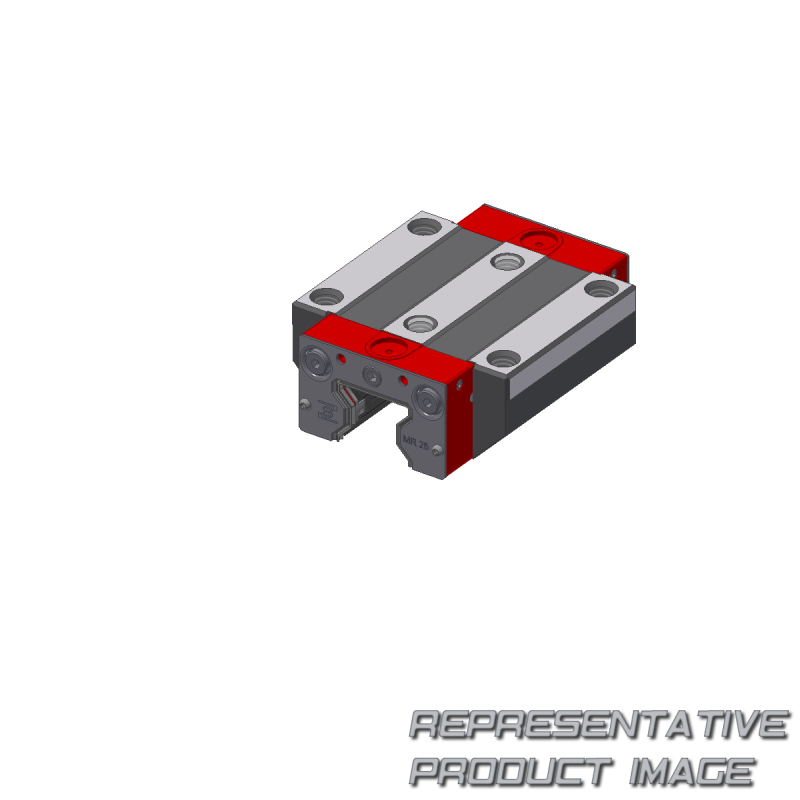

| type (monorail carriage) | mr |
| ml - dyn. longitud. moment capacity (nm) | 2,637 | ||
| m0l - static longitud. moment capacity (nm | 4,738 | ||
| c100 - dynamic load capacity (n) | 131,900 | ||
| o - reference face height | 12 | ||
| l6 - steel body length | 120 | ||
| l1 - exterior fixing hole spacing | 95 | ||
| j - carriage height | 57 | ||
| c4 - position of lateral lube hole | 25.75 | ||
| c1 - position of center front lube hole | 9 | ||
| b - carriage width in mm | 140 | ||
| coating | cn | ||
| Accuracy class | g1 | ||
| carriage build form | a |
