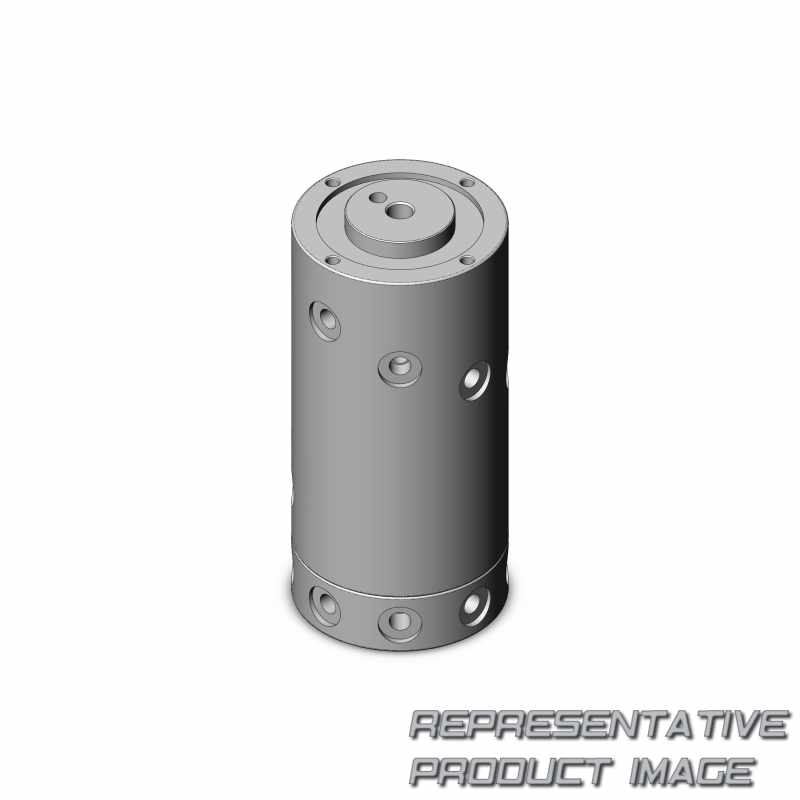

SMC MQR8-M5

Name: MQR8-M5 SMC
Brand: SMC
SKU: 740022-en-gbp
Price: 1263.95 GBP
Availability: InStock

£1,263.95

2 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	1.0mpa
Seal	metal seal

Weight	760g

model		mqr8-m5
operating fluid		air / inert gas
guide structure		bearing supported at both ends
flow rate characteristics		0.40
min. operating pressure		-100kpa
ambient temperature and operating fluid temperature note 1)		-10 to 80c
allowable rotation speed		900 min-1 (r.p.m.)
Weight		1.46638 lb

Number of circuits		8
seal structure		metal seal
Port size		m5 x 0.8
Lubrication		not required
max. operating pressure		1.0mpa
allowable torque note 2)		0.10 n?m or less
allowable radial load (allowable coupling axis reaction) note 4)		40n
