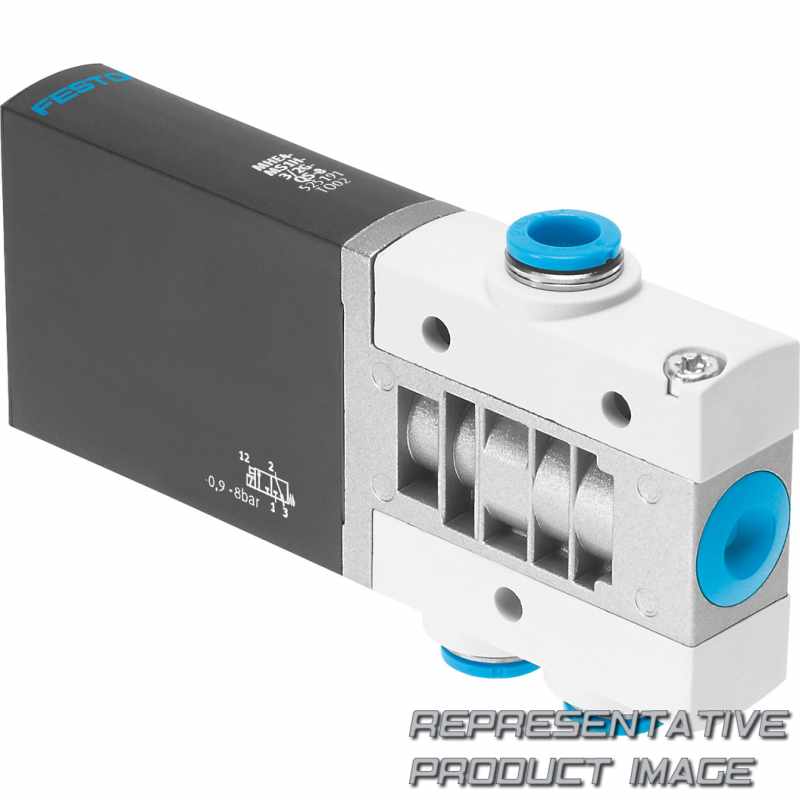

FESTO 525211 solenoid valve

Name: 525211 FESTO
Brand: FESTO
SKU: 701114-en-gbp
Price: 135.62 GBP
Availability: InStock

MHE4-MS1H-3/2O-QS-8

£135.62

2 pcs. with 1 to 3 days delivery to United States

Specifications

Width	18 mm
Weight	270g

Material screws		Galvanised steel
Material seals		HNBR NBR
Pneumatic port 33		QS-8
Pneumatic connection, port 11		QS-8
Electrical connection		2-pin Plugs
Ambient temperature		-5 °C ... 60 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Duty cycle		100%
Tolerance switching time on		+10%/-30%
Switching time on		3,5 ms
Max. switching frequency		210 Hz
Additional functions		Spark arresting Holding current reduction Protective circuit
lap		Underlap
Flow direction		Reversible with restrictions
Manual override		Non-detenting
Sealing principle		Soft
Note on grid dimension		Minimum distance between the valves is 6 mm
Nominal size		4 mm
KC mark		KC-EMV
Degree of protection		IP65
Design		Pressure-relieved poppet valve
Operating voltage		24V DC
Standard nominal flow rate		400 l/min
Type of actuation		Electric

Material housing		Die-cast zinc, coated
Note on materials		RoHS-compliant
Pneumatic connection, port 2		QS-8
Type of mounting		With through-hole
Product weight		270 g
Media temperature		-5 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: low-current phase 2.125 W, high-current phase 8.5 W
Switching time dispersion from 1 Hz		0,3 ms
Tolerance switching time off		+10%/-40%
Switching time off		3,5 ms
Operating pressure, reversible		-13,05 psi ... 14,5 psi
Reverse polarity protection		Bipolar
Symbol		00991322
Type of piloting		Direct
Mounting position		optional
Exhaust-air function		With flow control option
Grid dimension		24 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Approval		RCM trademark c UL us - Recognized (OL)
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 8 bar
pneumatic working port		QS-8
Construction width		18 mm
Valve function		3/2 open, single solenoid
