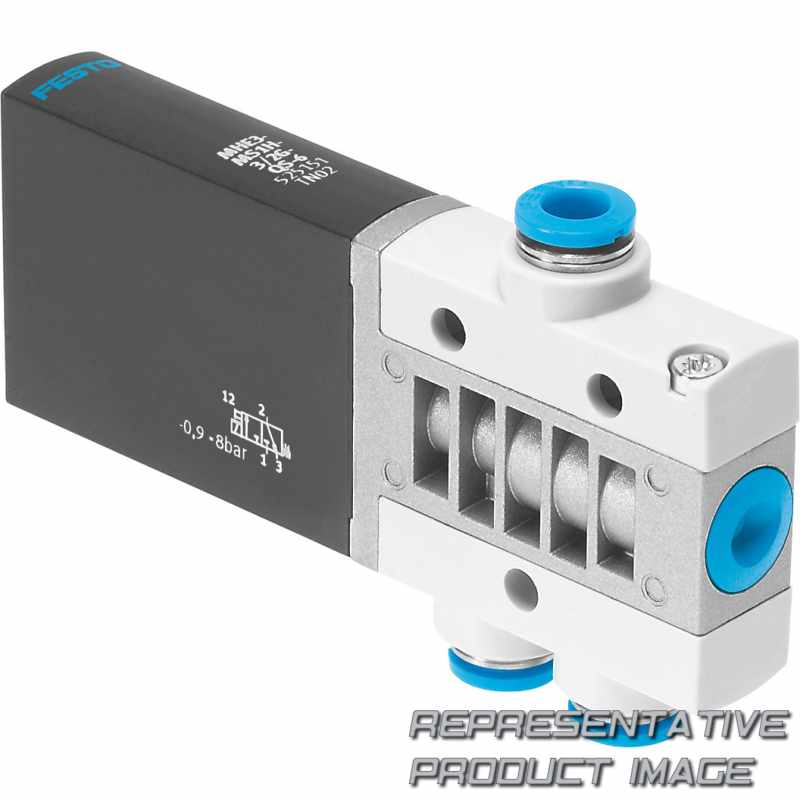

FESTO 525171 solenoid valve

Name: 525171 FESTO
Brand: FESTO
SKU: 701277-en-gbp
Price: 124.54 GBP
Availability: InStock

MHE3-MS1H-3/2O-QS-6

£124.54

2 pcs. with 1 to 3 days delivery to United States

Specifications

Width	14 mm
Weight	120g

Material screws		Galvanised steel
Material seals		HNBR NBR
Pneumatic port 33		QS-6
Pneumatic connection, port 11		QS-6
Electrical connection		2-pin Plugs
Ambient temperature		-5 °C ... 60 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: low-current phase 1.6 W, high-current phase 6.5 W
Switching time dispersion from 1 Hz		0,2 ms
Tolerance switching time off		+10%/-50%
Switching time off		2,8 ms
Operating pressure, reversible		-13,05 psi ... 14,5 psi
Reverse polarity protection		Bipolar
Symbol		00991322
Type of piloting		Direct
Mounting position		optional
Exhaust-air function		With flow control option
Grid dimension		19 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Approval		RCM trademark c UL us - Recognized (OL)
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 8 bar
pneumatic working port		QS-6
Construction width		14 mm
Valve function		3/2 open, single solenoid

Material housing		Die-cast zinc, coated
Note on materials		RoHS-compliant
Pneumatic connection, port 2		QS-6
Type of mounting		With through-hole
Product weight		120 g
Media temperature		-5 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Restrictions for environmental and media temperature		As a function of switching frequency (see graph)
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Duty cycle		100%
Tolerance switching time on		+10%/-30%
Switching time on		2,3 ms
Max. switching frequency		280 Hz
Additional functions		Spark arresting Holding current reduction Protective circuit
lap		Underlap
Flow direction		Reversible with restrictions
Manual override		Non-detenting
Sealing principle		Soft
Note on grid dimension		Minimum distance between the valves is 5 mm
Nominal size		3 mm
KC mark		KC-EMV
Degree of protection		IP65
Design		Pressure-relieved poppet valve
Operating voltage		24V DC
Standard nominal flow rate		200 l/min
Type of actuation		Electric
