FESTO 31001 solenoid valve

Name: 31001 FESTO
Brand: FESTO
SKU: 672827-en-gbp
Price: 394.55 GBP
Availability: InStock

MFH-5/3G-1/4-S-B

£394.55

7 pcs. with 2 to 5 days delivery to United States

Specifications

Series (MFH)	Solenoid valve, with armature tube for F solenoid coil, single solenoid, normally closed
Valve function (5/3G)	5/3-way valve, mid-position closed
Pneumatic connection (1/4)	G1/4
EU certification	None

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		G1/4
Pneumatic connection, port 2		G1/4
Pilot air port 14		G1/8
Pilot exhaust port 84		M5
Type of mounting		On PR rail With through-hole Either:
Product weight		500 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Storage temperature		-40 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Max. negative test pulse with 1 signal		3.700 µs
Switching time reversal		30 ms
Switching time off		30 ms
C value		6,35 l/sbar
Pilot pressure		3 bar ... 10 bar

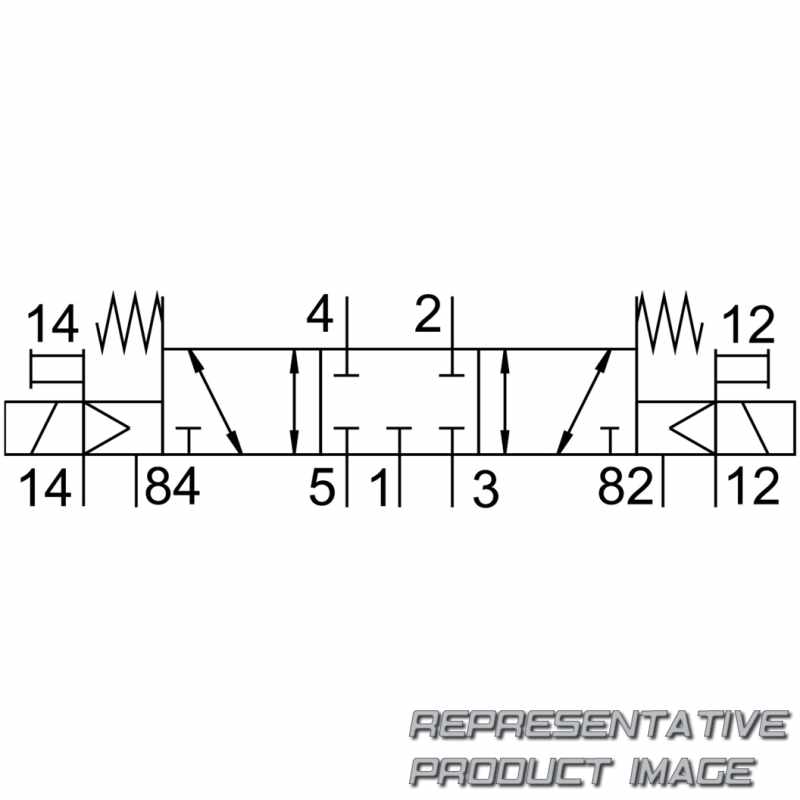

Symbol		00991020
Pilot air supply		External
Manual override		Non-detenting
Sealing principle		Soft
Grid dimension		33 mm
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 10 bar
Standard nominal flow rate		1.600 l/min
Type of actuation		Electric

Material seals		NBR
Pneumatic connection, port 5		G1/4
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		G1/4
Pilot air port 12		G1/8
Pilot exhaust port 82		M5
Electrical connection		Via F coil, to be ordered separately
Ambient temperature		-5 °C ... 40 °C
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. positive test pulse with 0 signal		2.200 µs
Switching time on		18 ms
Max. switching frequency		3 Hz
b value		0,38
lap		Positive overlap
Flow direction		Reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
Nominal size		10 mm
Design		Piston gate valve
pneumatic working port		G1/4
Construction width		32 mm
Valve function		5/3 closed
