| Weight | .12068 lb | ||
| power consumption (when rated voltage is at 24 v) | 1 w | ||
| allowable voltage fluctuation note 5) | ?10% of rated voltage | ||
| enclosure | ip40 or equivalent | ||
| volume of valve chamber note 3) | 50 l | ||
| Ambient temperature | 0 to 50c | ||
| leakage | zero leakage, either external or internal (at water pressure) | ||
| orifice diameter | 1.6 mm [1 mm] | ||
| fluid note 1) | air, water, pure water, diluent, cleaning solvent | ||
| valve type | universal | ||

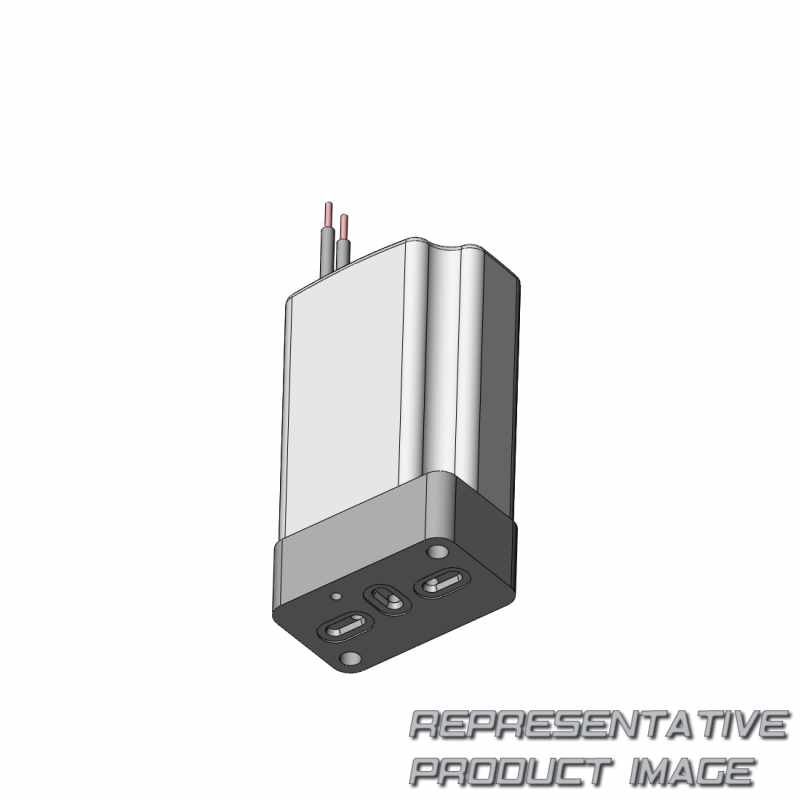

| model | lvm155r |
| coil switching noise note 6) | 60 db | ||
| type of coil insulation | class b | ||
| rated voltage | 12, 24 vdc | ||
| mounting orientation note 4) | free | ||
| fluid temperature | 0 to 50c (with no condensation) | ||
| proof pressure note 2) | 0.38 mpa [0.9 mpa] | ||
| response time | 15 ms or less (at pneumatic pressure) | ||
| operating pressure range | ?75 kpa to 0.25 mpa [0 to 0.6 mpa] | ||
| Number of ports | 3 | ||
| valve construction | diaphragm type direct operated poppet (rocker type) |
