| Weight | .07348 lb | ||
| power consumption (when rated voltage is at 24 v) | with power- saving circuit | ||
| allowable voltage fluctuation note 5) | ?10% of rated voltage | ||
| enclosure | ip40 or equivalent | ||
| volume of valve chamber note 3) | 18 l | ||
| Ambient temperature | 0 to 50c | ||
| leakage | zero leakage, either external or internal (at water pressure) | ||
| orifice diameter | 1.1 mm | ||
| fluid note 1) | air, water, pure water, diluent, cleaning solvent | ||
| valve type | n.c. | ||

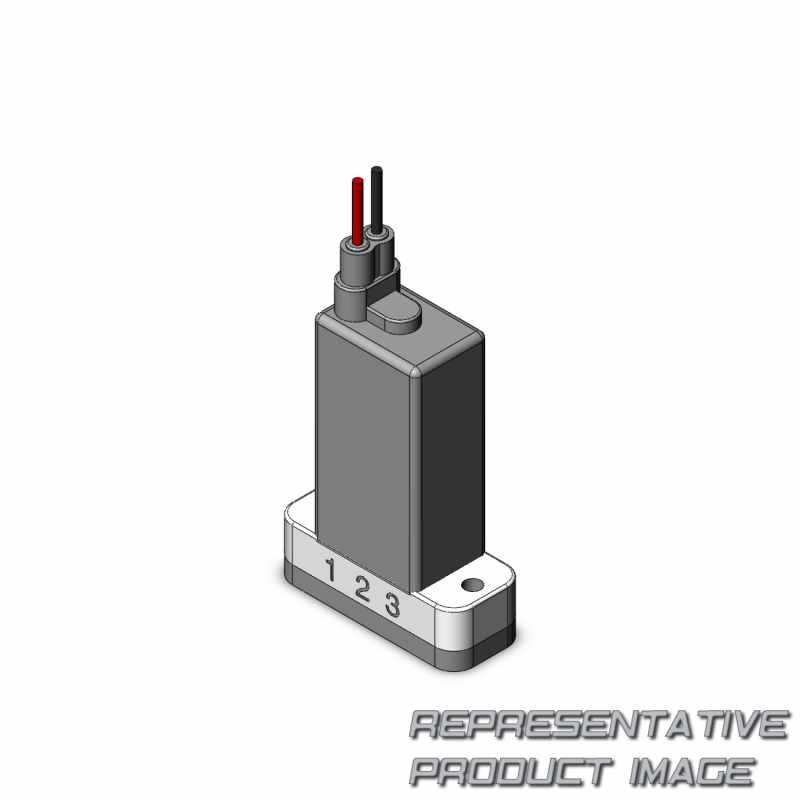

| model | lvm09r3 |
| coil switching noise note 6) | 50 db | ||
| type of coil insulation | class b | ||
| rated voltage | 12, 24 vdc | ||
| mounting orientation note 4) | free | ||
| fluid temperature | 0 to 50c (with no condensation) | ||
| proof pressure note 2) | 0.3 mpa | ||
| response time | 10 ms or less (at pneumatic pressure) | ||
| operating pressure range | ?75 kpa to 0.2 mpa | ||
| Number of ports | 2 | ||
| valve construction | diaphragm type direct operated poppet (rocker type) |
