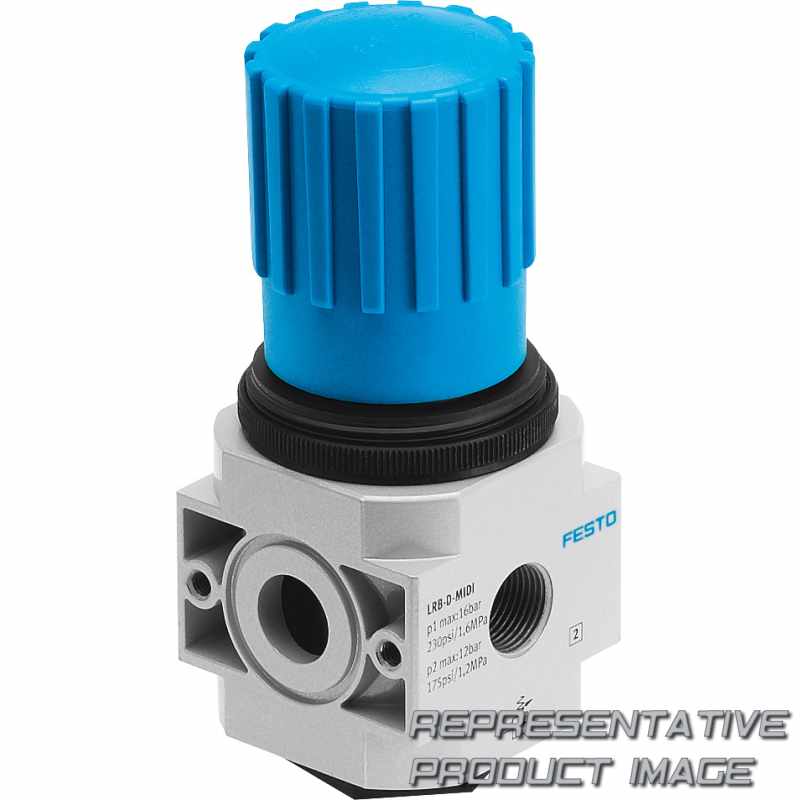

FESTO 197535 pressure regulator

Name: 197535 FESTO
Brand: FESTO
SKU: 665707-en-gbp
Price: 61.98 GBP
Availability: InStock

LRB-D-O-MINI

£61.98

2 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	Sub-base
Weight	250g

Material housing		Die-cast zinc
Material control panel		PA
Note on materials		RoHS-compliant
Pneumatic connection, port 1		Sub-base
Product weight		250 g
Media temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Max. pressure hysteresis		0,2 bar
Operating pressure		1 bar ... 16 bar

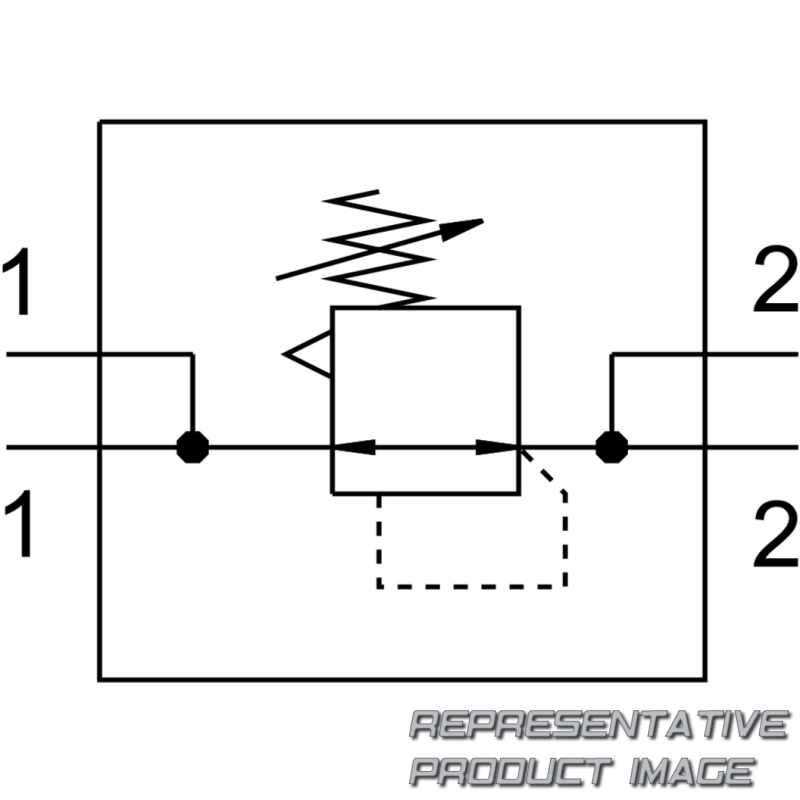

Symbol		00991534
Design		Directly actuated diaphragm regulator With through compressed air supply
Actuator lock		Rotary knob with detent
Size		Mini

Material seals		NBR
Material sub-base		Die-cast zinc
Pneumatic connection, port 2		G1/4
Type of mounting		In-line installation With accessories
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Standard nominal flow rate		1.600 l/min
Pressure regulation range		0,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		Prepared for G1/8
Controller function		Output pressure constant Via primary pressure compensation With secondary venting
Mounting position		optional
Series		D
