| Material bowl | PC | ||
| Pneumatic connection, port 2 | G1/4 | ||
| Type of mounting | With accessories | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Air purity class at output | Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Min. flow rate for lubricator function | 3 l/min | ||
| Symbol | 00991532 | ||
| Max. oil capacity | 45 cm³ | ||
| Mounting position | Vertical +/-5° | ||
| Size | Mini |
| Note on materials | RoHS-compliant | ||
| Pneumatic connection, port 1 | G1/4 | ||
| Product weight | 270 g | ||
| Media temperature | -10 °C ... 60 °C | ||
| Storage temperature | -10 °C ... 60 °C | ||
| Note on operating and pilot medium | Lubricated operation not possible | ||
| Standard nominal flow rate | 2.300 l/min | ||
| Operating pressure | 0 bar ... 16 bar | ||
| Bowl guard | Metal bowl guard | ||

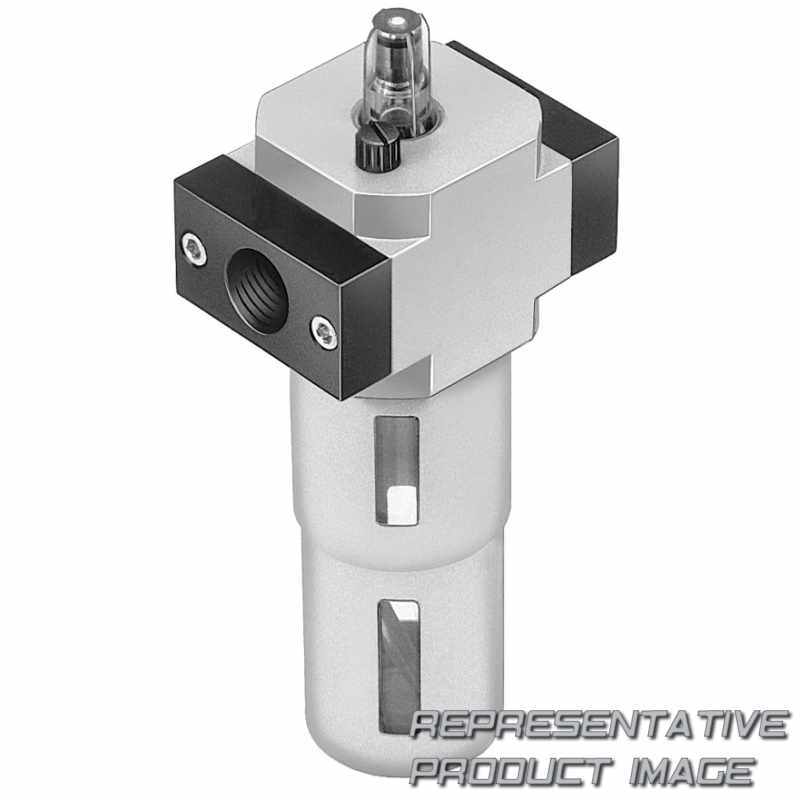

| Design | Proportional standard mist lubricator | ||
| Series | D |
