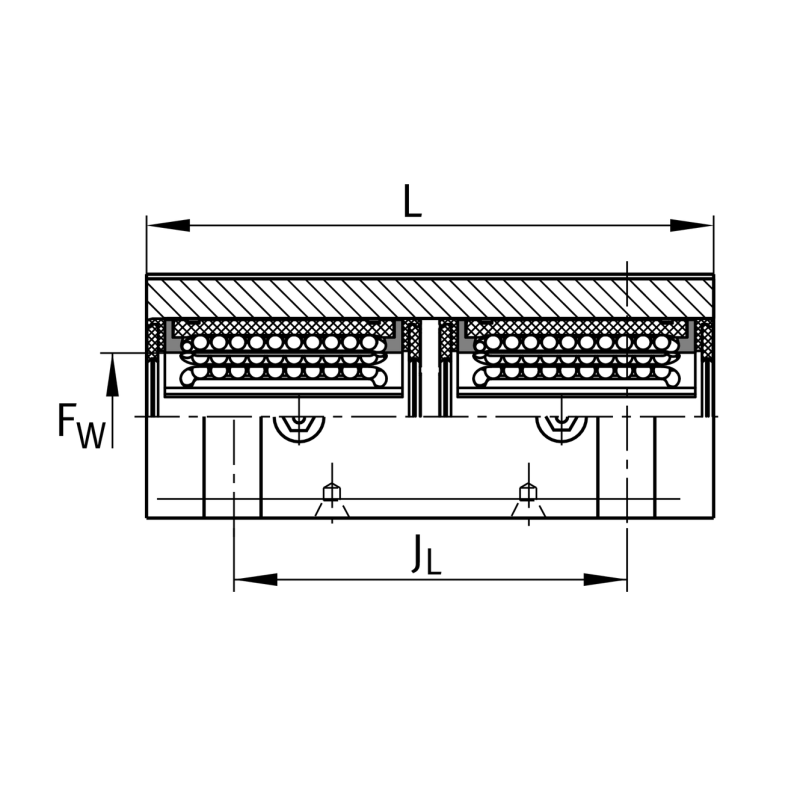

| Diameter of ball complement | FW | 20 | mm |
| length | L | 96 | mm |
| load capacity dyn. | Cmin | 3,500 |

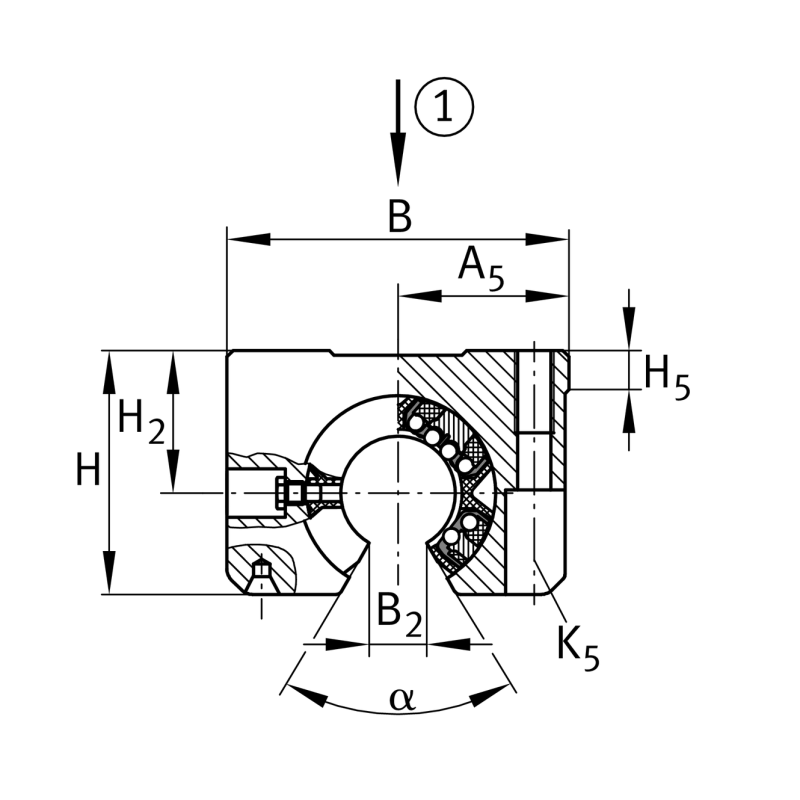

| heigth | H | 42 | mm |
| Width | B | 60 | mm |
| load capacity stat. | C0 min | 4,600 |

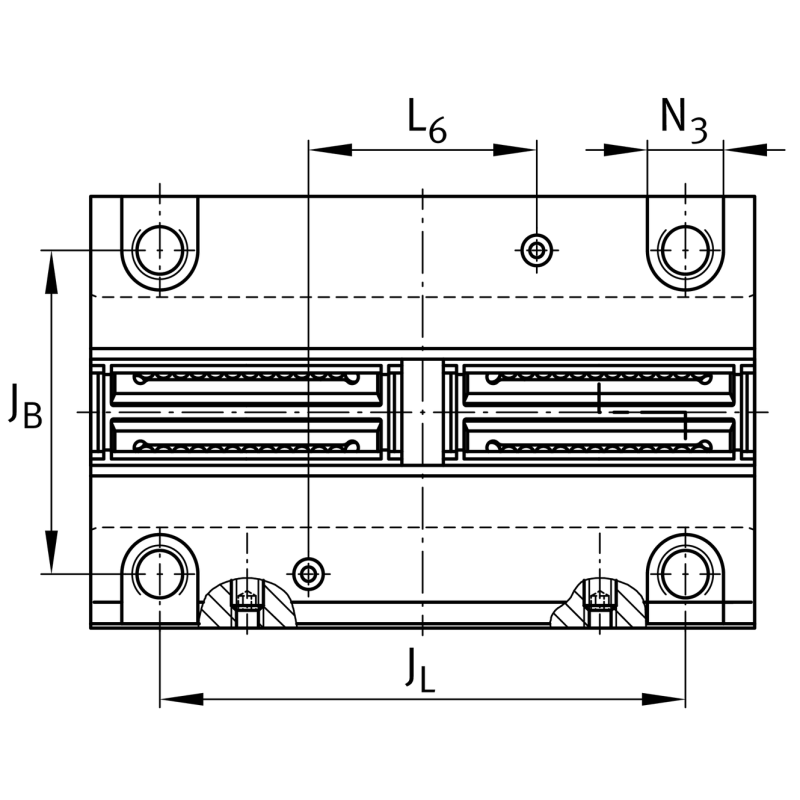

| Distance | JL | 33 | mm |
| Upper tolerance | Tol A5 | +0,008 | |

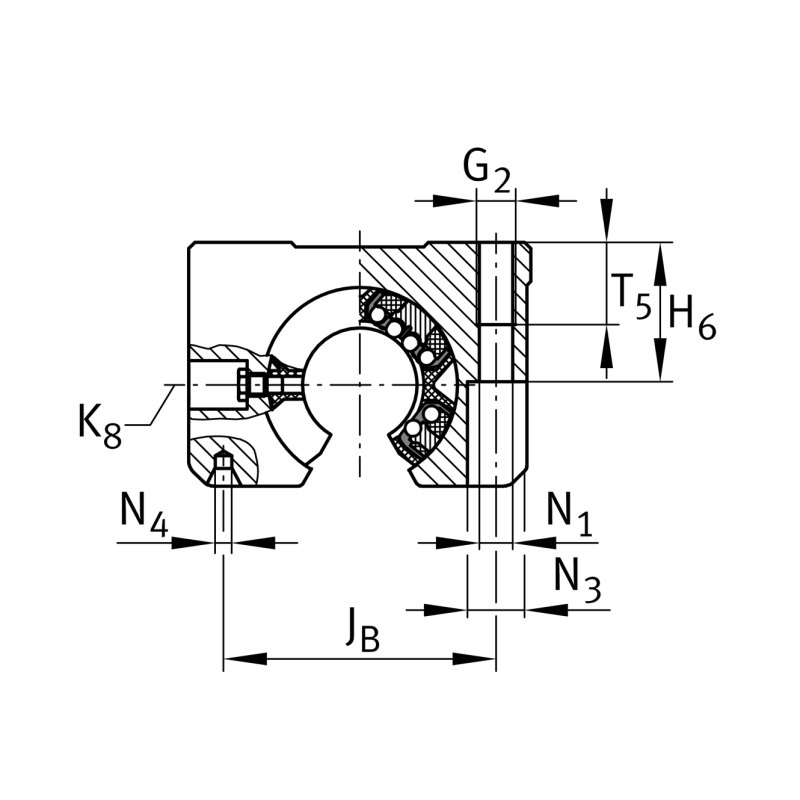

| Mounting dimension | JB | 11 | mm |
| Ball rows | 6 |
| Center height | H2 | 25 | mm |
| Lower tolerance | Tol H2 | -0,016 | |
| Lubrication nipple | K8 | NIP4MZ | |
| Angle | α | 55 | ° |
| Manufacturer | Part Number |
|---|---|
| Rodriguez | AG-OP-20-S |
| Thomson | SP M20 TWNO |
| Nippon Bearing | TKE 20 WUU |
| Rodriguez | TAGI-OP 20 S |
