INA

KR5202-2RS INA

KR5202-2RS-1 KR5202-2RS-2
KR5202-2RS-2 KR5202-2RS-3

INA KR5202-2RS

0008764290000

M16X1,5 x 40mm x 53.20mm

£50.49 £62.69 -19%
50+ pcs. with 1 to 3 days delivery to United Kingdom

Replaces: KR 5202 NPPU (INA)

Specifications

Width 53.20mm
Inner Diameter M16X1,5
Outer Diameter 40mm
Weight 190g

Main Dimensions & Performance Data

Speed on permanent grease lubrication nD G 7,000
Basic static load rating, radial C0r 6,400
Width B 53.20 mm
Outside diameter D 40 mm
Fatigue load limit, radial Cur 325 N
Basic dynamic load rating, radial Cr 9,900
Fit diameter of roller stud / stud d1 16 mm

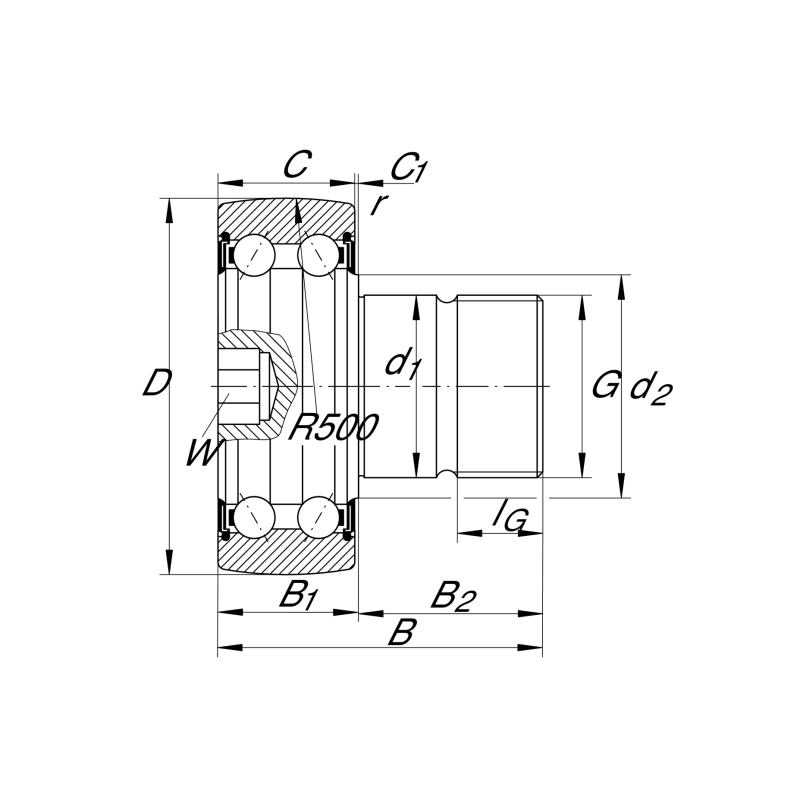

Dimensions

Maximum witdh of thrust washer B1 17 mm
Width, outer ring C 15.90 mm
Stop diameter of thrust washer d2 20 mm
Thread M16X1,5
Width of flats W 8 mm
Bolt/stud length effectively B2 36.50 mm
Protrusion outer ring to thrust washer C1 0.80 mm
Minimum chamfer dimension rmin 0.60 mm
Thread length IG 19 mm
Radius of outer ring outside profile R 500 mm
