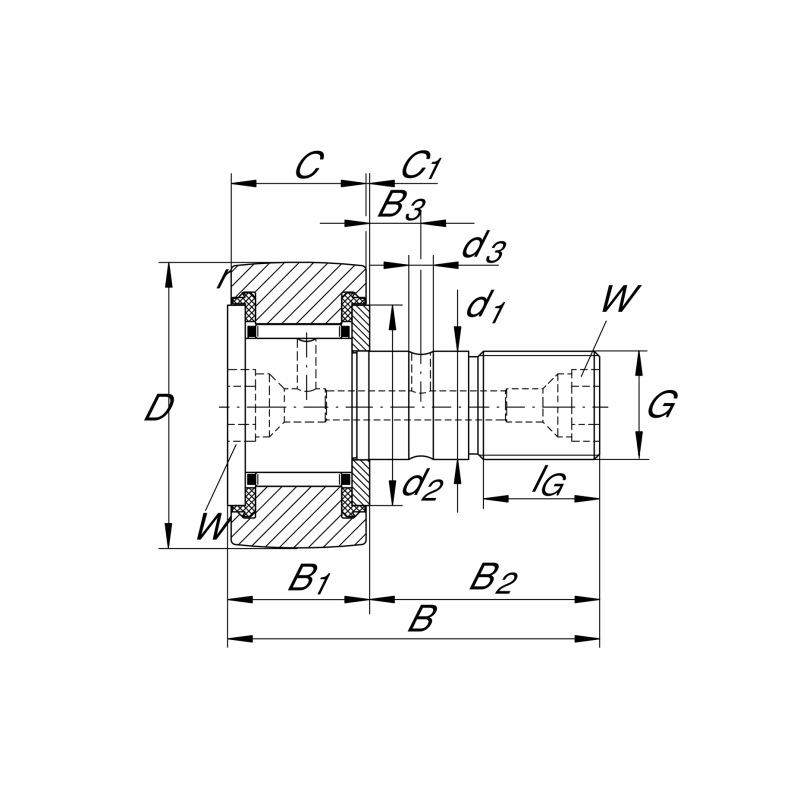

| Maximum witdh of thrust washer | B1 | 13.20 | mm |
| Width, outer ring | C | 12 | mm |
| Minimum chamfer dimension | rmin | 0.30 | mm |
| Thread | M10X1 | ||
| Width of flats | W | 5 | mm |
| Bolt/stud length effectively | B2 | 23 | mm |
| Protrusion outer ring to thrust washer | C1 | 0.60 | mm |
| Stop diameter of thrust washer | d2 | 17.50 | mm |
| Thread length | IG | 12 | mm |
| Outside diameter | D | 22 | mm |
| Width of the roller stud | B | 36 | mm |
| Basic static load rating, radial | C0r | 5,400 | |
| Speed on permanent grease lubrication | nD G | 8,000 |
| Fit diameter of roller stud / stud | d1 | 10 | mm |
| Basic dynamic load rating, radial | Cr | 4,500 | |
| Fatigue load limit, radial | Cur | 740 | N |
| Manufacturer | Part Number |
|---|---|
| NTN | KR22 FLLH/3AS (NTN) |
