| Material electrical contact | Gold-plated copper alloy | ||
| Housing colour | grey | ||
| Cable sheath colour | grey | ||
| Pollution degree | 2 | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive | ||
| Ambient temperature with moving cable | -5 °C ... 70 °C | ||
| Note on degree of protection | In assembled state | ||
| Wire ends | Cut off bluntly | ||
| Cable structure | 20 x 0.25 mm² | ||
| Cable diameter | 8,8 mm | ||
| Bending radius, fixed cable | ≥ 88 mm | ||
| Cable characteristic | Standard | ||
| Immunity to surge | 1 kV | ||
| Nominal operating voltage DC | 24 V | ||
| Electrical connection 2, used connections/cores | 20 | ||
| Electrical connection 2, connector system | Open end | ||
| Electrical connection 2, function | Controller side | ||
| Electrical connection 1, type of mounting | 2x screw 4-40 UNC | ||
| Electrical connection 1, number of connections/cores | 26 | ||
| Electrical connection 1, cable outlet | Straight | ||
| Electrical connection 1, design | Angular | ||
| Product weight | 280 g | ||
| Cable designation | Without inscription label holder |
| Material screw-type lock | Nickel-plated brass | ||
| Material housing | PBT-reinforced | ||
| Material cable sheath | PVC | ||
| Note on materials | RoHS-compliant | ||
| CE marking (see declaration of conformity) | To UK RoHS instructions | ||
| Storage temperature | -25 °C ... 75 °C | ||
| Ambient temperature | -25 °C ... 70 °C | ||
| Degree of protection | IP40 | ||
| Nominal cross section conductor | 0,25 mm² | ||
| Cable diameter tolerance | ± 0.25 mm | ||
| Bending radius, moving cable | ≥ 132 mm | ||
| Test conditions cable | Test conditions on request | ||
| Cable length | 2,5 m | ||
| Current rating at 40°C | 2,8 A | ||
| Operational voltage range DC | 0 V ... 30 V | ||
| Electrical connection 2, number of connections/cores | 20 | ||
| Electrical connection 2, connection type | Cable | ||

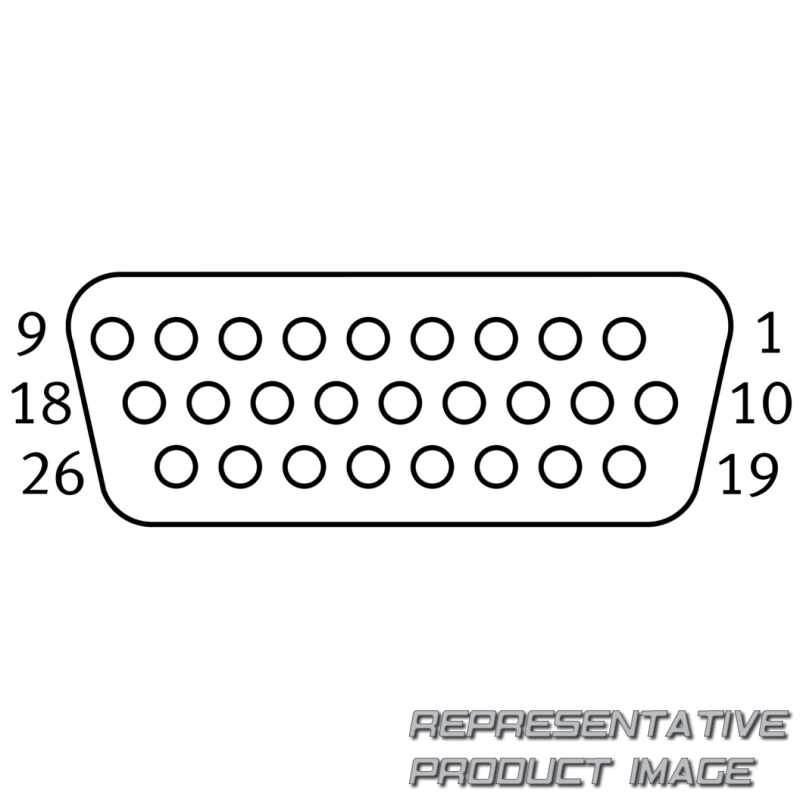

| Electrical connection 1, connection pattern | 00995735 | ||
| Electrical connection 1, used connections/cores | 20 | ||
| Electrical connection 1, connector system | Sub-D | ||
| Electrical connection 1, connection type | Socket | ||
| Electrical connection 1, function | Field device side | ||
| Frequency of connection | 50 | ||
| Conforms to standard | DIN 41652 |
