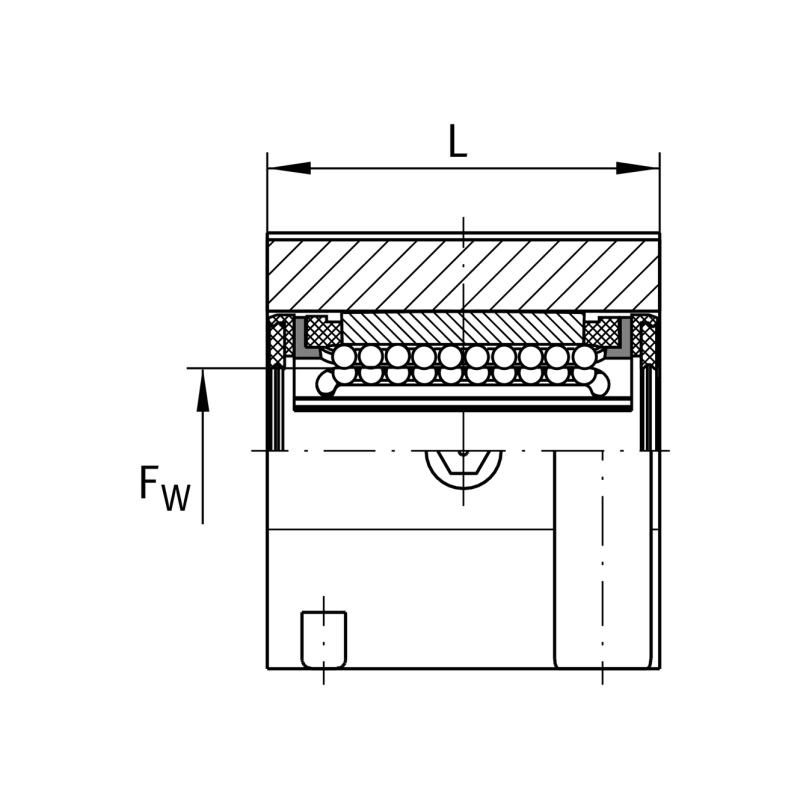

| Diameter of ball complement | FW | 30 | mm |
| length | L | 68 | mm |
| load capacity dyn. | Cmin | 5,900 |

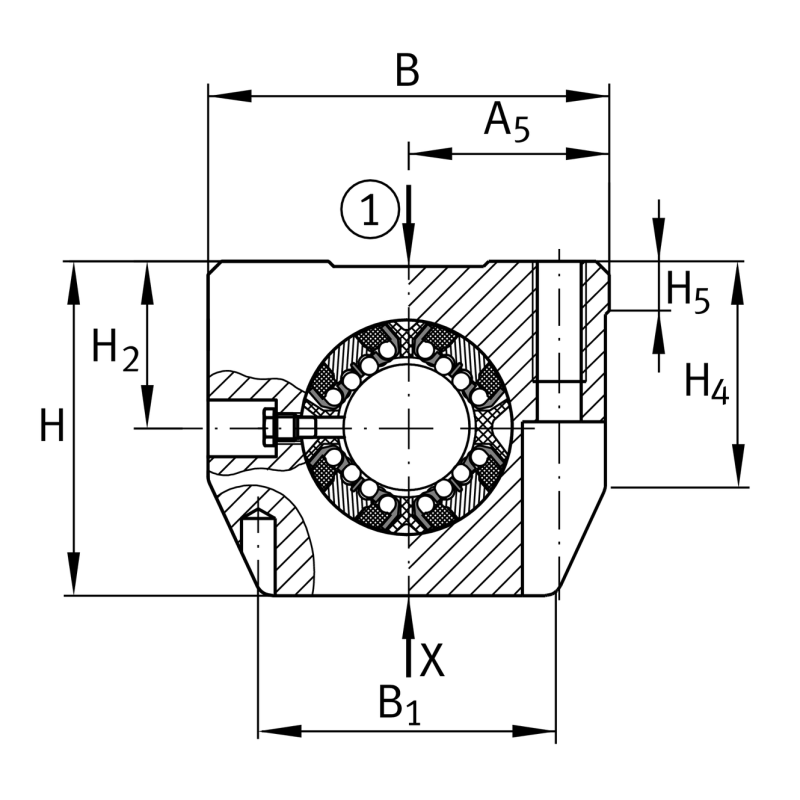

| heigth | H | 70 | mm |
| Width | B | 87 | mm |
| load capacity stat. | C0 min | 6,000 |

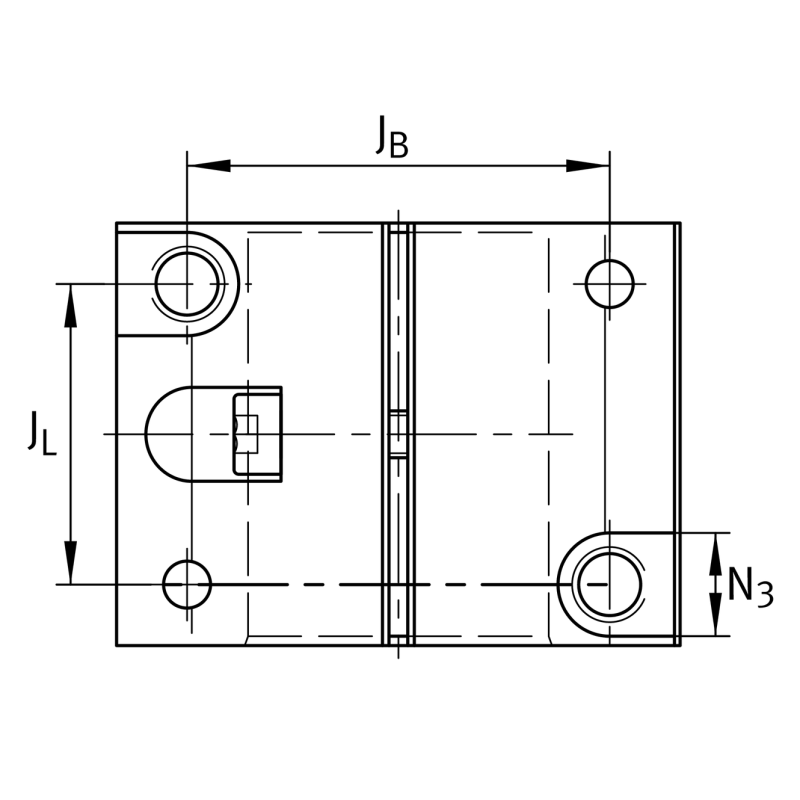

| Distance | JL | 45 | mm |
| Upper tolerance | Tol A5 | +0,008 | |
| Mounting dimension | JB | 15 | mm |

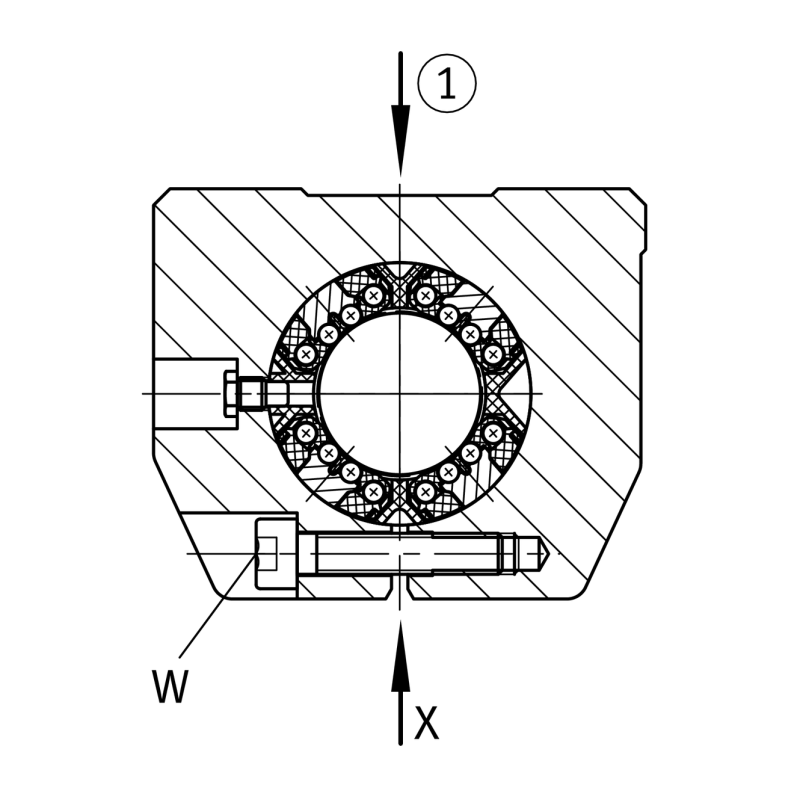

| Width across flats | W | 5 | mm |
| Center height | H2 | 35 | mm |
| Lower tolerance | Tol H2 | -0,016 | |

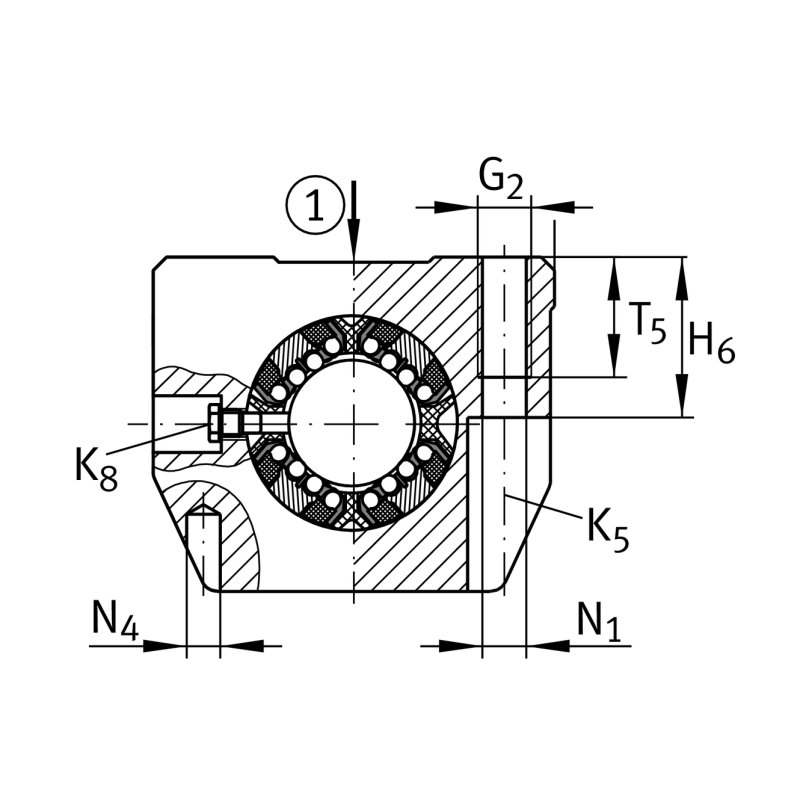

| Lubrication nipple | K8 | NIP5MZ | |
| Ball rows | 8 |
| Manufacturer | Part Number |
|---|---|
| Thomson | SP M30 PBA |
| REXROTH | 1702-230-20 |
| NADELLA | LGE30-AJ |
