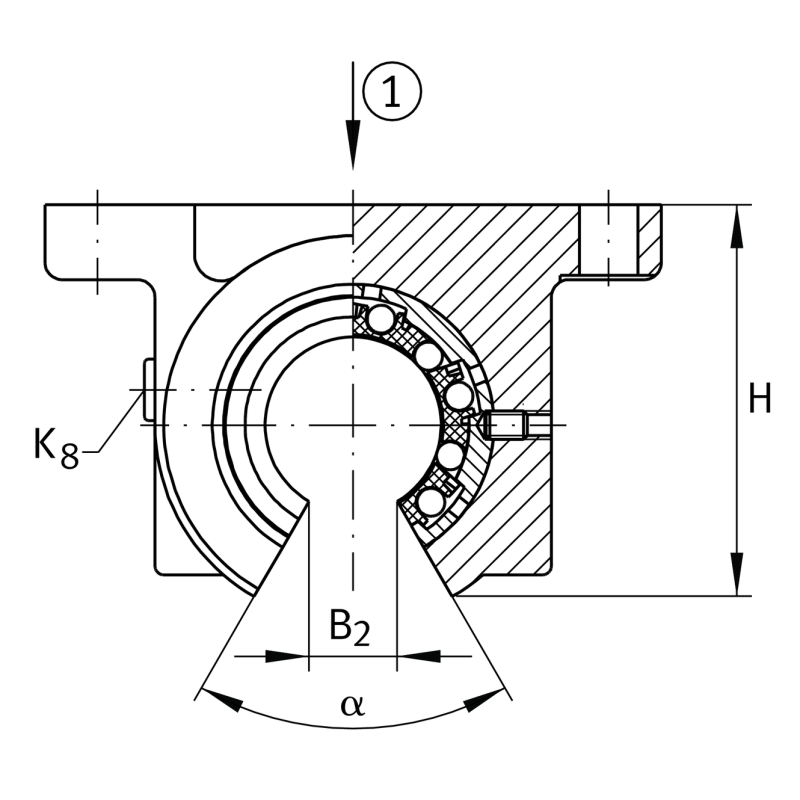

| Center height | H | 63.50 | mm |
| Tolerance | h12 | ||
| load capacity dyn. | Cmin | 3,700 |
| length | L | 68 | mm |
| Width | B | 88 | mm |
| load capacity stat. C0 | C0 | 3,000 |

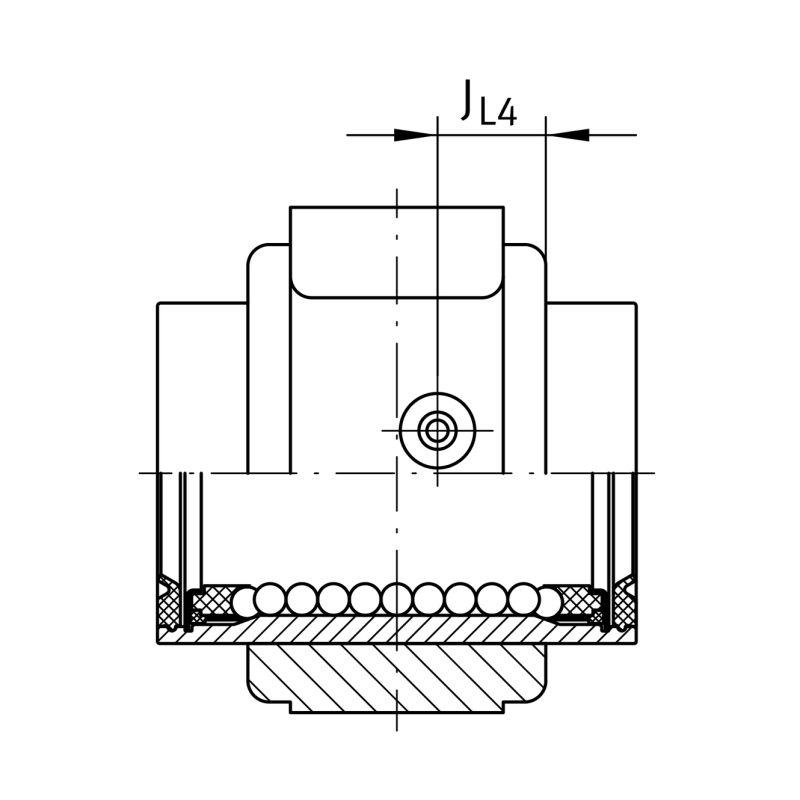

| Distance | JL | 19 | mm |
| Upper tolerance | Tol A5 | +0,015 | |
| L2 | M6 | ||
| Angle | α | 54 | ° |
| height shaft | H2 | 35 | mm |
| Lower tolerance | Tol H2 | -0,015 | |
| Lubrication nipple | K8 | NIPA2 | |
| Ball rows | 5 |
