| Material housing | Aluminium Anodised | ||
| Material sub-base | Aluminium Anodised | ||
| Pneumatic connection, port 5 | PK-3 | ||
| Pneumatic connection, port 3 | PK-3 | ||
| Pneumatic connection, port 1 | PK-3 | ||
| Product weight | 380 g | ||
| Media temperature | 0 °C ... 60 °C | ||
| Switching time reversal | 13 ms | ||
| Sealing principle | Soft | ||
| Design | Poppet seat | ||
| pneumatic working port | PK-3 | ||
| Valve function | 5/2 double solenoid |
| Material seals | NBR | ||
| Note on materials | RoHS-compliant | ||
| Pneumatic connection, port 4 | PK-3 | ||
| Pneumatic connection, port 2 | PK-3 | ||
| Type of mounting | On sub-base On mounting frame With through-hole Either: | ||
| Ambient temperature | 0 °C ... 40 °C | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] | ||

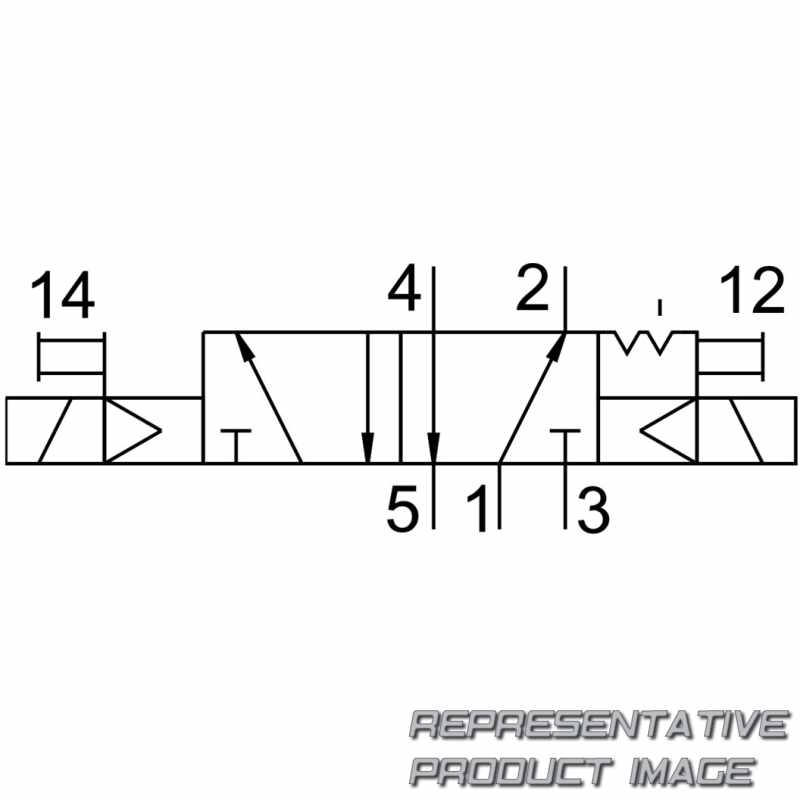

| Symbol | 00995753 | ||
| Nominal size | 2,5 mm | ||
| Operating pressure | 2 bar ... 8 bar | ||
| Standard nominal flow rate | 105 l/min |
