| Minimum chamfer dimension | rmin | 1.10 | mm |
| Contact angle | α | 15 | ° |
| Bore diameter | d | 75 | mm |
| Width | B | 20 | mm |
| Basic static load rating, radial | C0r | 17,900 | |
| Limiting speed for grease lubrication | nG Grease | 17,000 |
| Outside diameter | D | 115 | mm |
| Basic dynamic load rating, radial | Cr | 25,500 | |
| Fatigue load limit, radial | Cur | 1,900 |

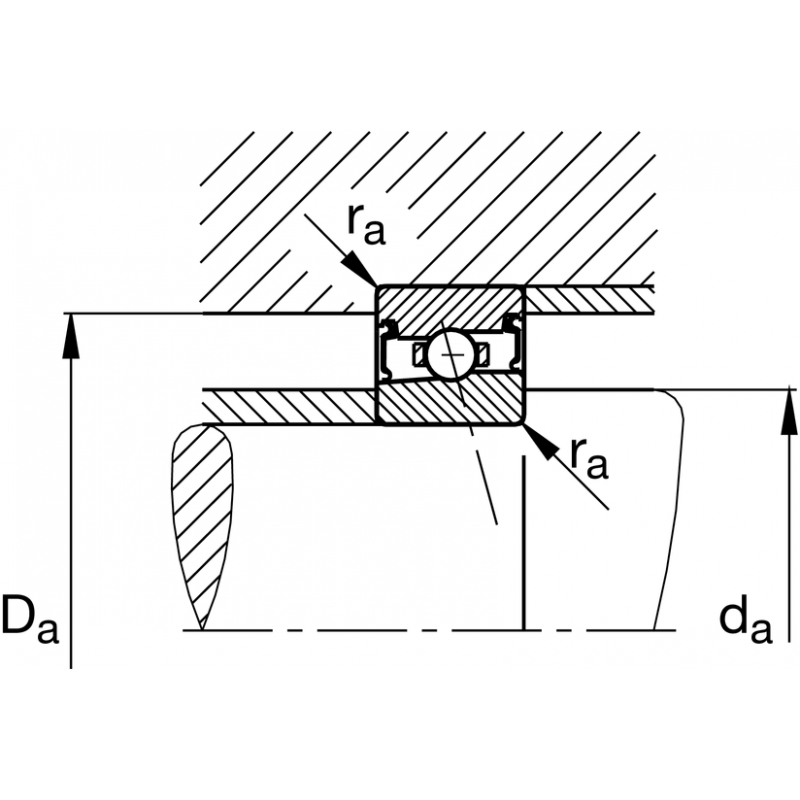

| Diameter shaft shoulder | da | 82 | mm |
| Shoulder diameter outer ring | Da | 107 | mm |
| Maximum recess radius | ra max | 0.60 | mm |
| Diameter shaft shoulder clearance | da | h12 | |
| Shoulder diameter outer ring clearance | Da | H12 | |
| Distance between the apexes of the pressure cones | a | 22.70 | mm |
