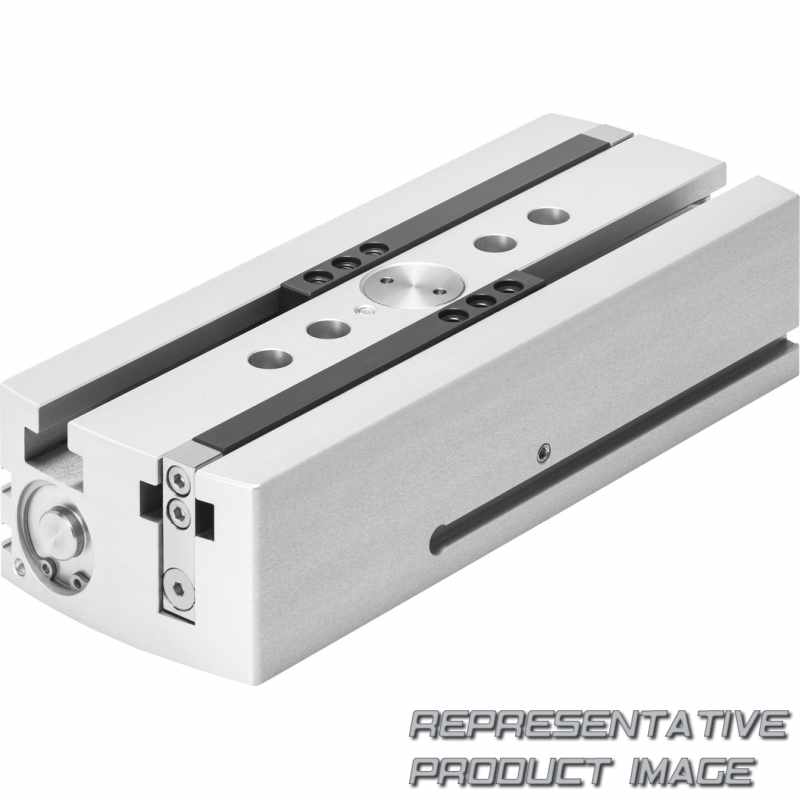

FESTO 3361491 parallel gripper

Name: 3361491 FESTO
Brand: FESTO
SKU: 690492-en-gbp
Price: 2696.12 GBP
Availability: InStock

HGPL-40-100-A-B

£2,696.12

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (HGPL)	Parallel gripper, sturdy with long stroke
Size (40)	40
Stroke per gripper jaw [mm] (100)	100

Position sensing (A)	For proximity sensor
Generation (B)	Function-optimised

Material gripper jaws		Steel Hardened
Note on materials		RoHS-compliant
Type of mounting		Via female thread and centring sleeve Via through-hole and centring sleeve
Lubrication interval for guide components		5 MioCyc
Max. torque at gripper My static		80 Nm
Max. force on gripper jaw Fz static		2.500 N
Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)		608 N
Ambient temperature		5 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Max. mass per external gripper finger		420 g
Min. opening time at 0.6 MPa (6 bar, 87 psi)		620 ms
Operating pressure		3 bar ... 8 bar
Total gripper force, opening, 0.6 MPa (6 bar, 87 psi)		1.038 N
Position detection		Via proximity switch
Gripper function		Parallel
Mounting position		optional
Repetition accuracy, gripper		< 0,03 mm
Max. gripper jaw backlash Sz		< 0,05 mm
Max. replacement accuracy		< 0,2 mm
Size		40

Material housing		Aluminium Smooth anodised
Pneumatic connection		M5
Product weight		5.340 g
Max. torque at gripper Mz static		100 Nm
Max. torque at gripper Mx static		125 Nm
Mass moment of inertia		318,25 kgcm²
Gripper force per gripper jaw, opening, 0.6 MPa (6 bar, 87 psi)		519 N
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Min. closing time at 0.6 MPa (6 bar, 87 psi)		690 ms
Max. operating frequency of gripper		< 1 Hz
Total gripper force, closing, 0.6 MPa (6 bar, 87 psi)		1.216 N
Symbol		00991894
Design		Twin piston Guidance Piston gate valve T-shape Rack and pinion
Mode of operation		Double-acting
Number of gripper jaws		2
Rotationally symmetrical		≤ 0,2 mm
Max. angular gripper jaw backlash ax, ay		< 0,2 deg
Stroke per gripper jaws		100 mm
