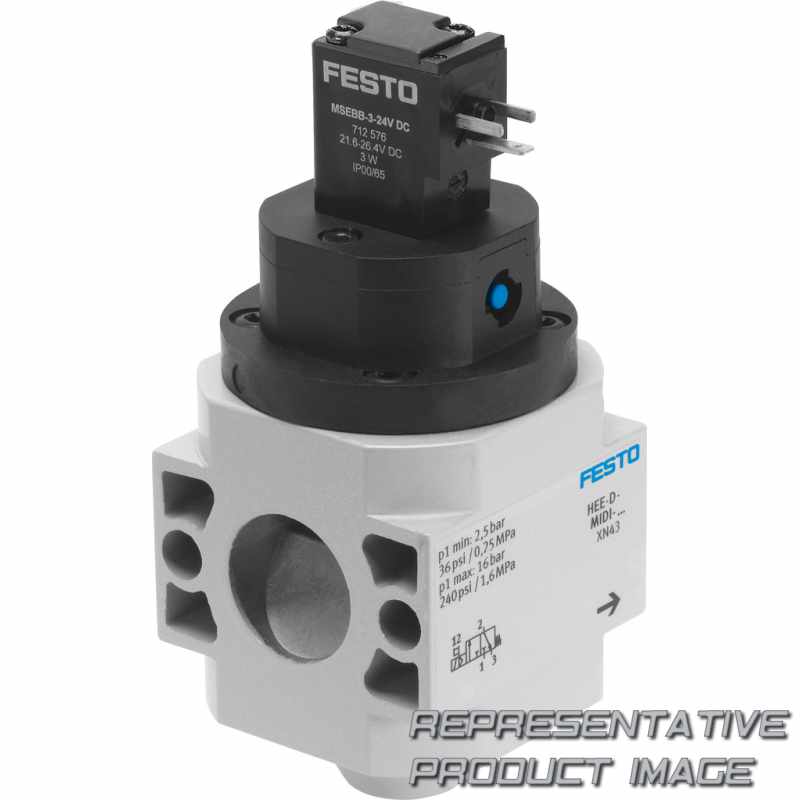

FESTO 172961 on/off valve

Name: 172961 FESTO
Brand: FESTO
SKU: 670749-en-gbp
Price: 163.18 GBP
Availability: InStock

HEE-D-MIDI-230

£163.18 1 pcs. with 1 to 3 days delivery to United States

Specifications

Size (MIDI)	Grid dimension 55 mm (without connecting plates)
Rated operating voltage (230)	230 V AC

Material housing		Die-cast aluminium
Signal status display		With accessories
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Product weight		500 g
Mounting position		optional
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Ambient temperature		-10 °C ... 60 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Characteristic coil data		230 V AC: 50/60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
Operating pressure		2,5 bar ... 16 bar
Symbol		00991008
Type of reset		Mechanical spring
Exhaust-air function		Without flow control option
Type of actuation		Electric

Material seals		NBR
Electrical connection		Type C Plugs To DIN EN 175301-803
Pneumatic connection, port 3		G1/4
Flow direction		Non-reversible
Type of mounting		In-line installation With accessories
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Media temperature		-10 °C ... 60 °C
Note on materials		RoHS-compliant
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-14 % / +10 %
Duty cycle		100%
Valve function		3/2-way, closed, monostable
Type of piloting		Pilot actuated
Manual override		Detenting
Sealing principle		Soft
Design		Piston gate valve
