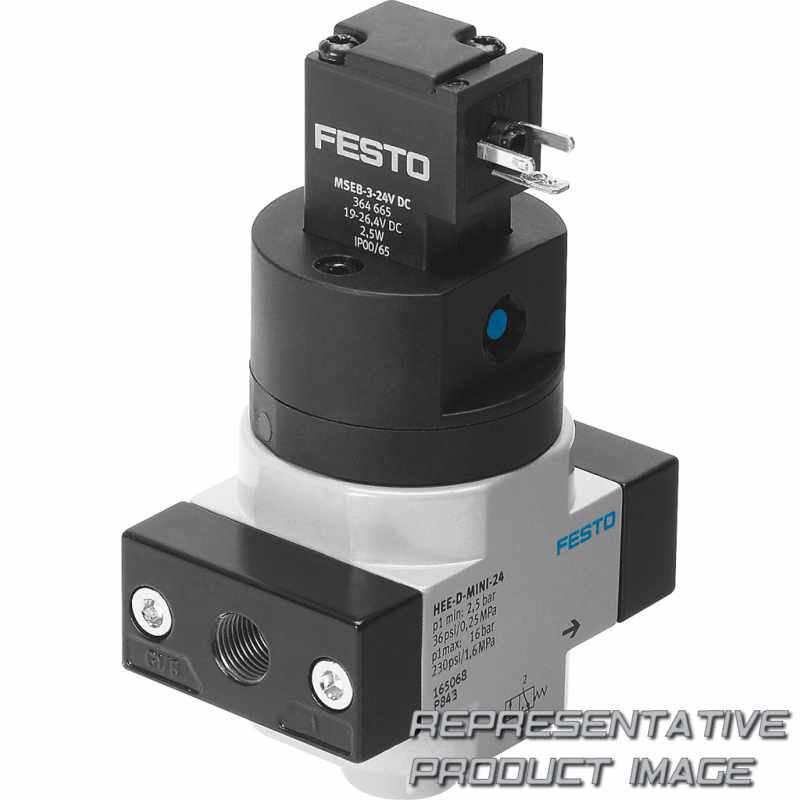

FESTO 172940 on/off valve

Name: 172940 FESTO
Brand: FESTO
SKU: 677178-en-gbp
Price: 144.06 GBP
Availability: InStock

HEE-3/8-D-MINI-230

£144.06 1 pcs. with 1 to 3 days delivery to United States

Specifications

Size (MINI)	Grid dimension 40 mm (without connecting plates)
Rated operating voltage (230)	230 V AC

Material housing		Die-cast aluminium
Signal status display		With accessories
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Pneumatic connection, port 2		G3/8
Product weight		223 g
Mounting position		optional
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Ambient temperature		-10 °C ... 60 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Characteristic coil data		230 V AC: 50/60 Hz, pick-up power 5.0 VA, holding power 3.7 VA
Standard nominal flow rate		1.600 l/min
C value		7,3 l/sbar
Valve function		3/2-way, closed, monostable
Type of piloting		Pilot actuated
Manual override		Detenting
Sealing principle		Soft
Design		Piston gate valve

Material seals		NBR
Electrical connection		Type C Plugs To DIN EN 175301-803
Pneumatic connection, port 3		G1/8
Pneumatic connection, port 1		G3/8
Flow direction		Non-reversible
Type of mounting		In-line installation With accessories
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Media temperature		-10 °C ... 60 °C
Note on materials		RoHS-compliant
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-14 % / +10 %
Duty cycle		100%
b value		0,28
Operating pressure		2,5 bar ... 16 bar
Symbol		00991008
Type of reset		Mechanical spring
Exhaust-air function		Without flow control option
Type of actuation		Electric
