| Weight | 88.18490 lb | ||
| accessories | power cable, foot for fixing | ||
| electrical system - alarm | refer to alarm function. | ||
| electrical system - overcurrent protector | 15 a | ||
| facility water system - required flow rate note 5) | stainless steel 303, stainless steel 304 | ||
| facility water system - temperature range | 2.6 to 4.0 gpm (10 to 15 l/min) | ||
| circulating fluid system - port size | stainless steel 303, stainless steel 304, epdm, ceramics, pp, pe, polyurethane, sic, pps | ||
| circulating fluid system - pump capacity | refer to performance chart. | ||
| circulating fluid system - heating capacity | 2200 w (clear water), 1500 w (fluorinert fc-3283) note 3) | ||
| circulating fluid system - operating temperature range | 50 to 140f (10 to 60 c) (no condensation) | ||
| ambient temperature/humidity | 50 to 95f (10 to 35c), 35 to 80%rh (no condensation) | ||
| radiating method | water-cooled | ||

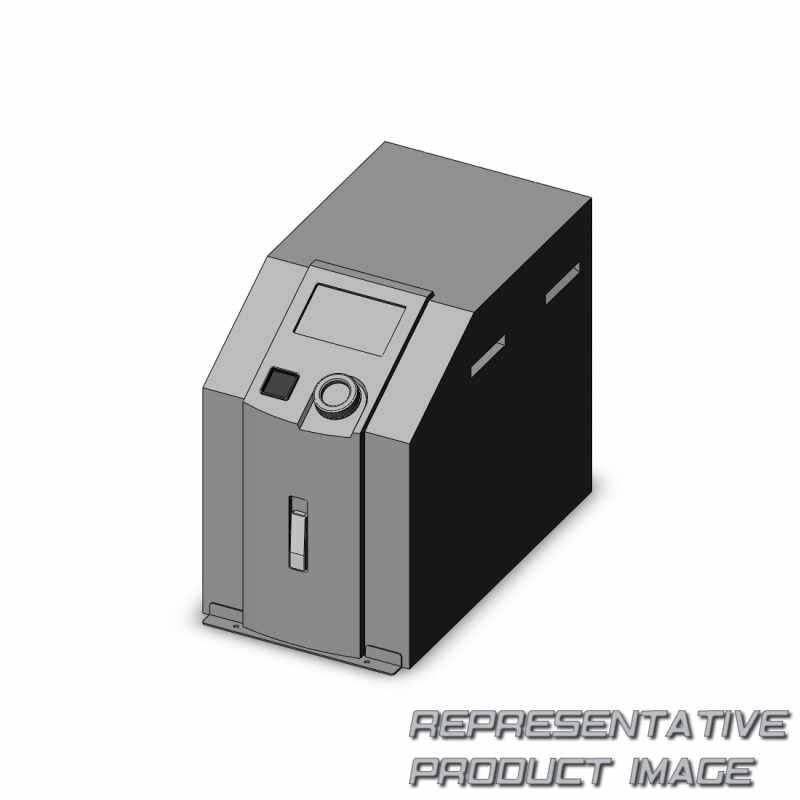

| model | hec012-w2a |
| safety standards | ce marking | ||
| electrical system - communications | rs-485 | ||
| electrical system - current consumption | 10 a | ||
| electrical system - power supply | single-phase 200 to 220 vac ?10%, 50/60 hz | ||
| facility water system - pressure range | in/out: rc1/2 | ||
| facility water system - wetted parts material | within 145 psi (1 mpa) | ||
| circulating fluid system - tank capacity | approx. 1.3 gal (5 l) | ||
| circulating fluid system - temperature stability note 4) | ?0.018 to 0.054f (?0.01 to 0.03c) | ||
| circulating fluid system - cooling capacity | 1200 w (clear water), 800 w (fluorinert fc-3283) note 3) | ||
| circulating fluid system - circulating fluid note 1) | clear water, fluorinated fluid (fluorinert fc-3283, galden? ht135) | ||
| control method | cooling/heating automatic shift pid control | ||
| cooling method | thermoelectric device (thermo-module) |
