| Material housing | Die-cast aluminium PBT | ||
| Pneumatic connection, port 3 | G1 | ||
| Pneumatic connection, port 1 | G1/2 | ||
| Flow direction | Non-reversible | ||
| Type of mounting | In-line installation With through-hole | ||
| Media temperature | -10 °C ... 60 °C | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| b value | 0,28 | ||
| Operating pressure | 1 bar ... 10 bar | ||

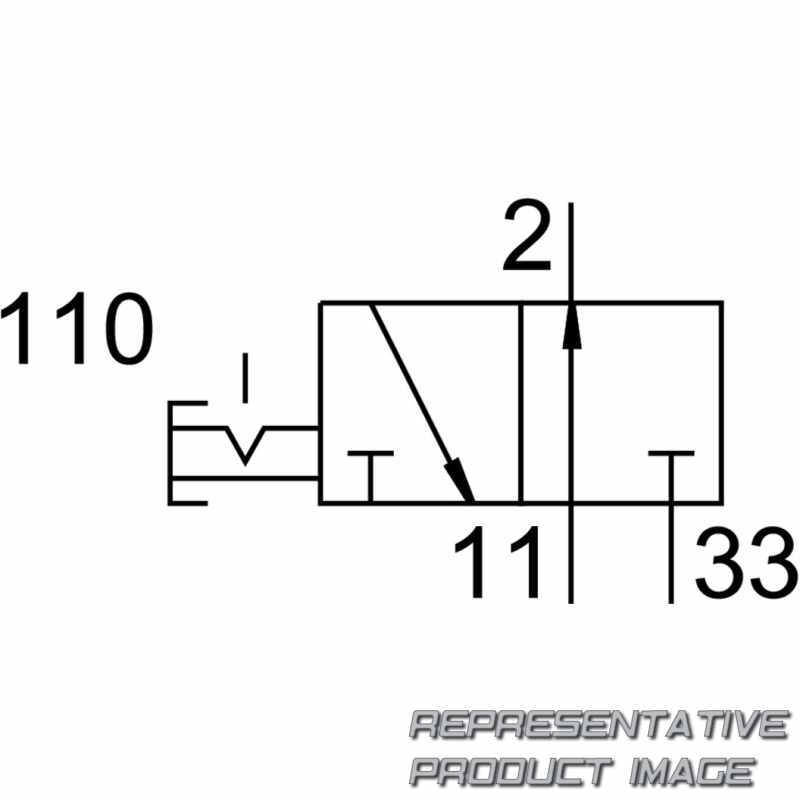

| Symbol | 00991672 | ||
| Exhaust-air function | Without flow control option | ||
| Type of actuation | Manual |
| Material seals | NBR TPE-U(PU) | ||
| Pneumatic connection, port 2 | G1/2 | ||
| Product weight | 1.100 g | ||
| Mounting position | optional | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Corrosion resistance class CRC | 3 - high corrosion stress | ||
| Standard nominal flow rate | 6.200 l/min | ||
| C value | 28,13 l/sbar | ||
| Valve function | 3/2 double solenoid | ||
| Manual override | None | ||
| Sealing principle | Soft | ||
| Design | Piston gate valve |
