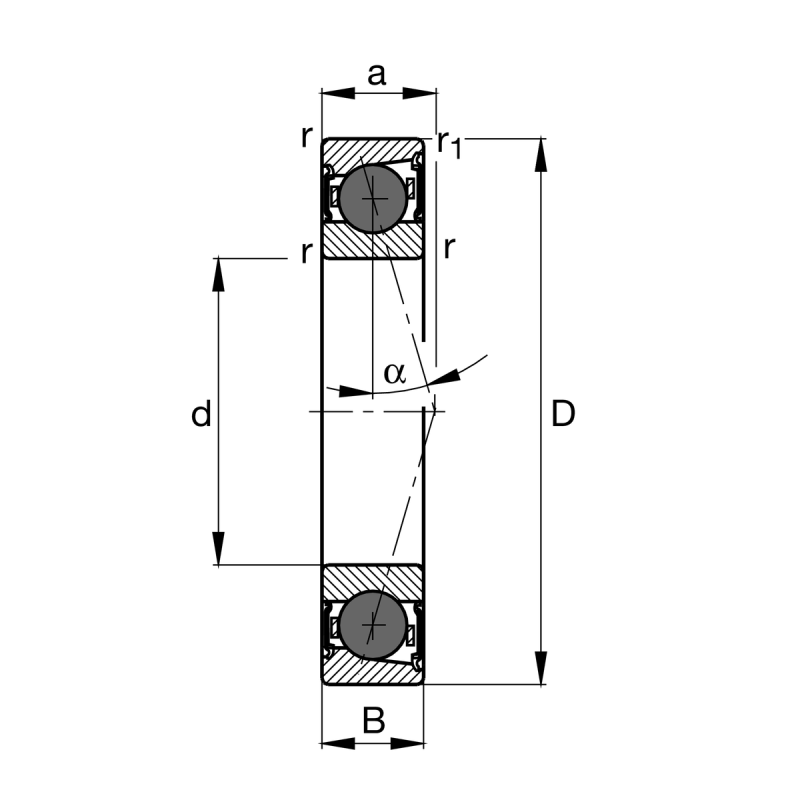

| Bore diameter | d | 20 | mm |
| Width | B | 12 | mm |
| Basic static load rating, radial | C0r | 3,900 | |
| Limiting speed for grease lubrication | nG Grease | 48,000 |
| Outside diameter | D | 42 | mm |
| Basic dynamic load rating, radial | Cr | 9,800 | |
| Fatigue load limit, radial | Cur | 315 | N |

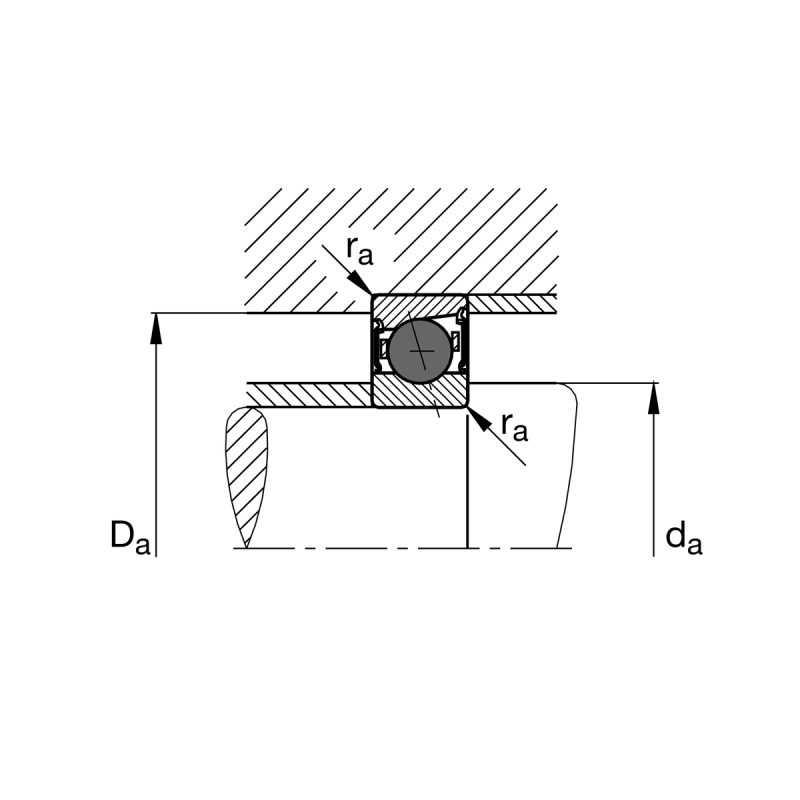

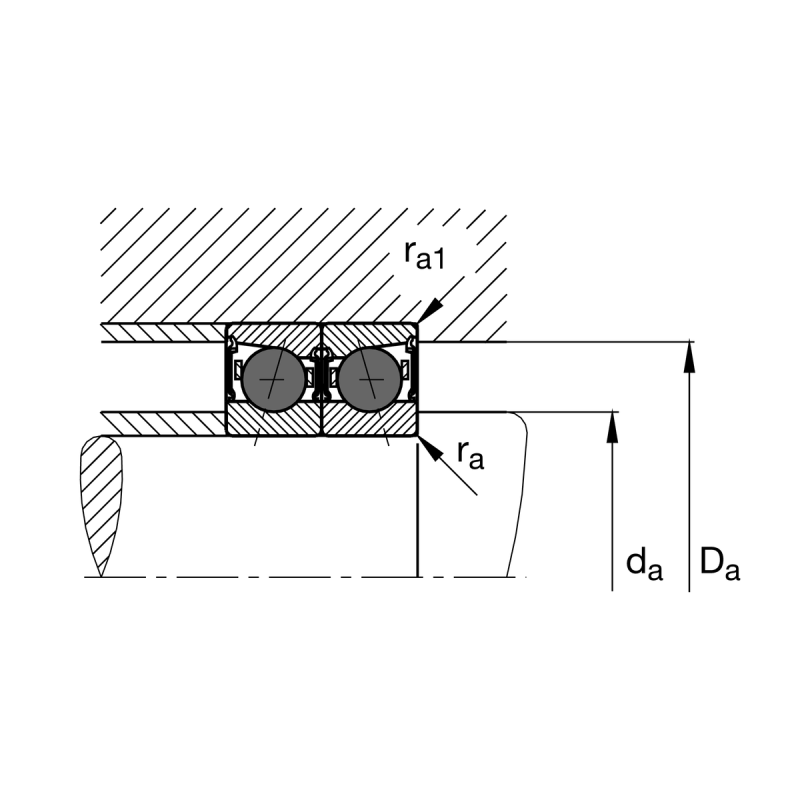

| Diameter shaft shoulder | da | 25 | mm |
| Shoulder diameter outer ring | Da | 37 | mm |
| Maximum recess radius | ra max | 0.30 | mm |
| Diameter shaft shoulder clearance | da | h12 | |
| Shoulder diameter outer ring clearance | Da | H12 | |
| Distance between the apexes of the pressure cones | a | 13.20 | mm |
| Minimum chamfer dimension | rmin | 0.60 | mm |
| Contact angle | α | 25 | ° |
