| Material seals | NBR | ||
| Product weight | 34 g | ||
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||

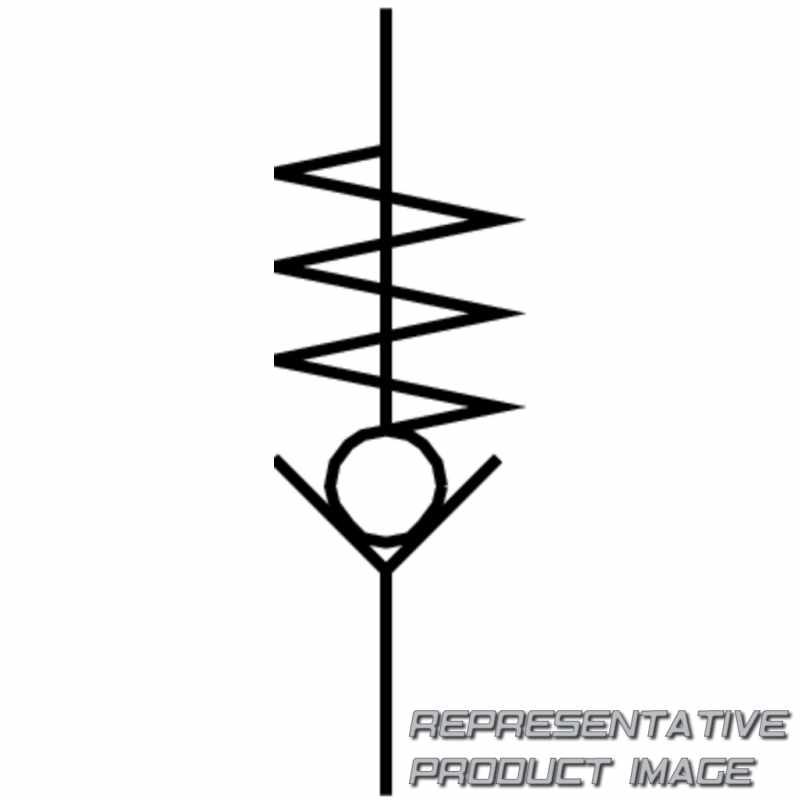

| Symbol | 00991455 | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Type of mounting | Screw-in | ||
| Pneumatic connection, port 1 | G3/8 |
| Note on materials | RoHS-compliant | ||
| Max. tightening torque | 20 Nm | ||
| Media temperature | -10 °C ... 60 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Standard nominal flow rate 1->2 (6-5) | 2.000 l/min | ||
| Mounting position | optional | ||
| Material housing | Wrought aluminium alloy Anodised | ||
| Operating pressure | 0,4 bar ... 12 bar | ||
| Pneumatic connection, port 2 | G3/8 | ||
| Valve function | Non-return function |
