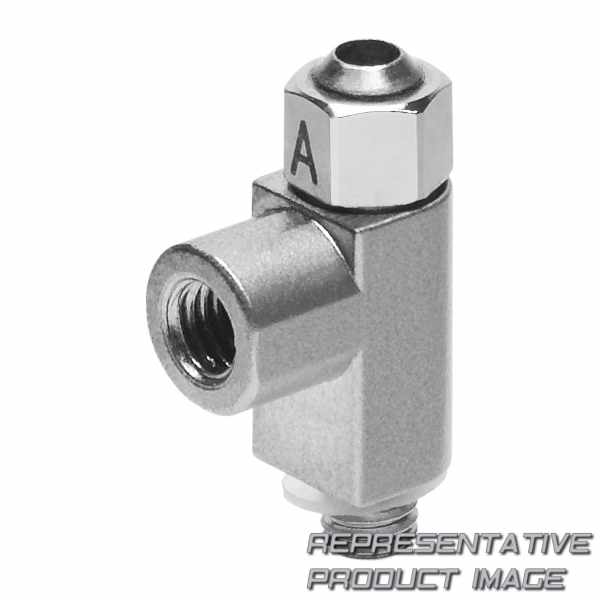

FESTO 175038 one-way flow control valve

Name: 175038 FESTO
Brand: FESTO
SKU: 677969-en-gbp
Price: 24.1 GBP
Availability: InStock

GRLA-M3

£24.10

32 pcs. with 1 to 3 days delivery to United States

Specifications

Series (GRLA)	One-way flow control valve
Pneumatic connection (M3)	Male thread M3
Pneumatic connection 1	Connection size as for port 1 or 2

Material swivel fitting		Die-cast zinc
Material seals		NBR
Material screw-in stud		Brass Nickel-plated
Max. tightening torque		0,3 Nm
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)		33 l/min ... 37 l/min
Symbol		00991452
Explosion protection		The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Ambient temperature		-10 °C ... 60 °C
Standard nominal flow rate in blocked direction		18 l/min ... 20 l/min
Type of mounting		Screw-in
Pneumatic connection, port 2		M3
Valve function		Exhaust air one-way flow control function

Material adjusting screw		Brass
Note on materials		RoHS-compliant
Product weight		2 g
Media temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)		33 l/min
Mounting position		optional
Maritime classification		See certificate
Operating pressure		0,2 bar ... 10 bar
Standard nominal flow rate in flow control direction		18 l/min
Adjustment component		Slotted head screw
Pneumatic connection, port 1		M3
