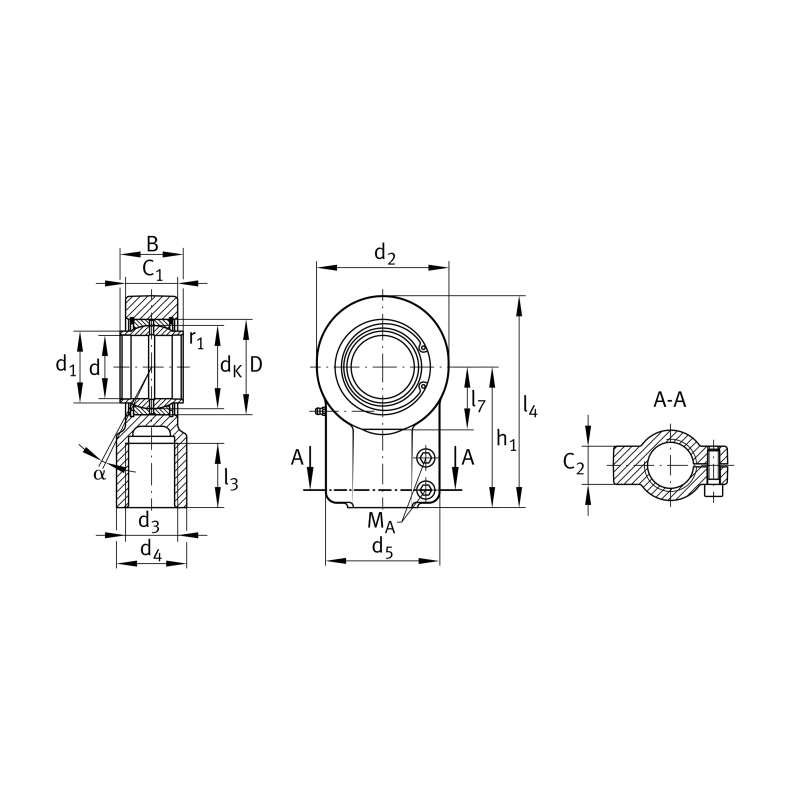

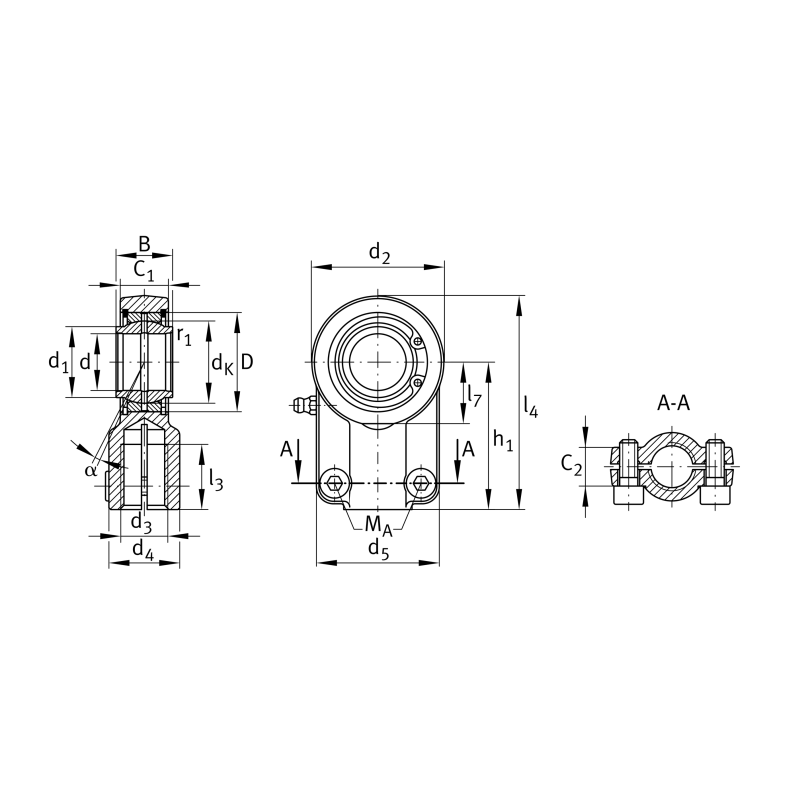

| Ball diameter | dK | 44 | mm |
| Outer eye diameter | d2 | 70 | mm |
| Shank diameter | d4 | 38 | mm |
| Width of the rod end | C1 | 27 | mm |
| Thread length Internal thread | l3 | 37 | mm |
| Distance drilling with/shaft start | l7 | 32 | mm |
| Shank diameter, large | d5 | 66 | mm |
| Edge Spacing | r1smin | 0.60 | mm |
| Cylinder Force | FZ | 50,000 | |
| Bore diameter bearing, upper tolerance | dOT | 0.03 | mm |
| Width inner ring, lower tolerance | BUT | -0.25 | mm |
| Outer flange diameter inner ring | d1 | 38 | mm |
| Thread size | d3 | M27x2 | |
| Shank Length Internal thread head | h1 | 80 | mm |
| Tilt angle | α | 4 | ° |
| Total length internal thread head | l4 | 115 | mm |
| Welding Shank Diameter | d 7 | M10x25 | |
| Width | B | 22 | mm |
| Radial Clearance | Gr | 0,037 - 0,1 | |
| Tightening torque | MA | 64 | Nm |
| Bore diameter bearing, tolerance | dT | H7 |
| Bore diameter bearing | d | 32 | mm |
| Width inner ring, | B | 32 | mm |
| Basic static load rating, radial | C0r | 98,800 |
| Outside diameter bearing | D | 52 | mm |
| Basic dynamic load rating, radial | Cr | 67,300 |
