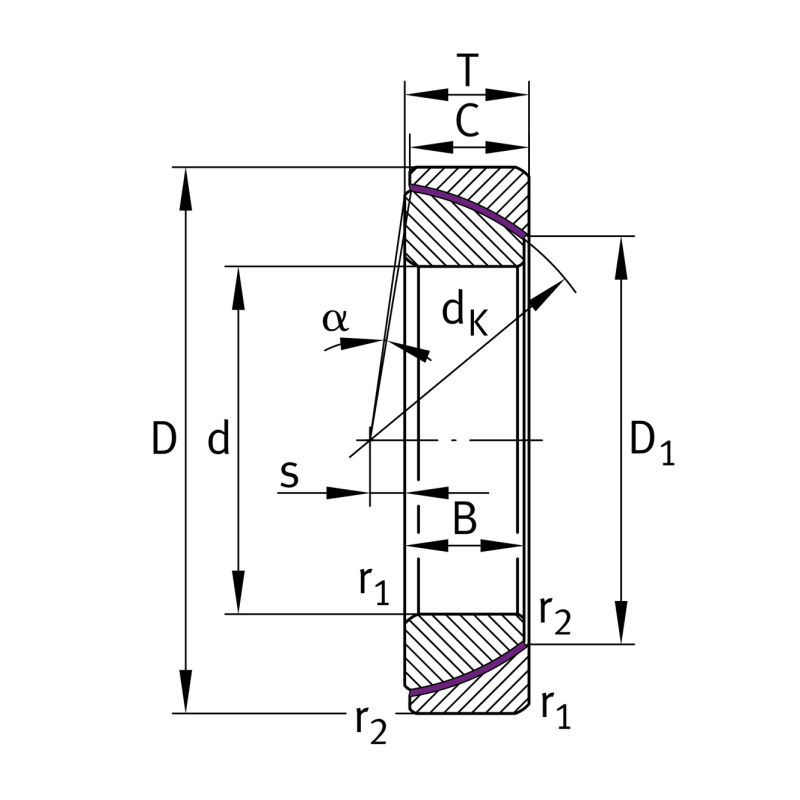

| Bore diameter bearing | d | 50 | mm |
| Height | T | 20 | mm |
| Basic dynamic load rating, radial | Cr | 355,000 |
| Outside diameter bearing | D | 80 | mm |
| Width inner ring | B | 19 | mm |
| Basic static load rating, radial | C0r | 592,000 |
| Edge Spacing | r1smin | 0.30 | mm |

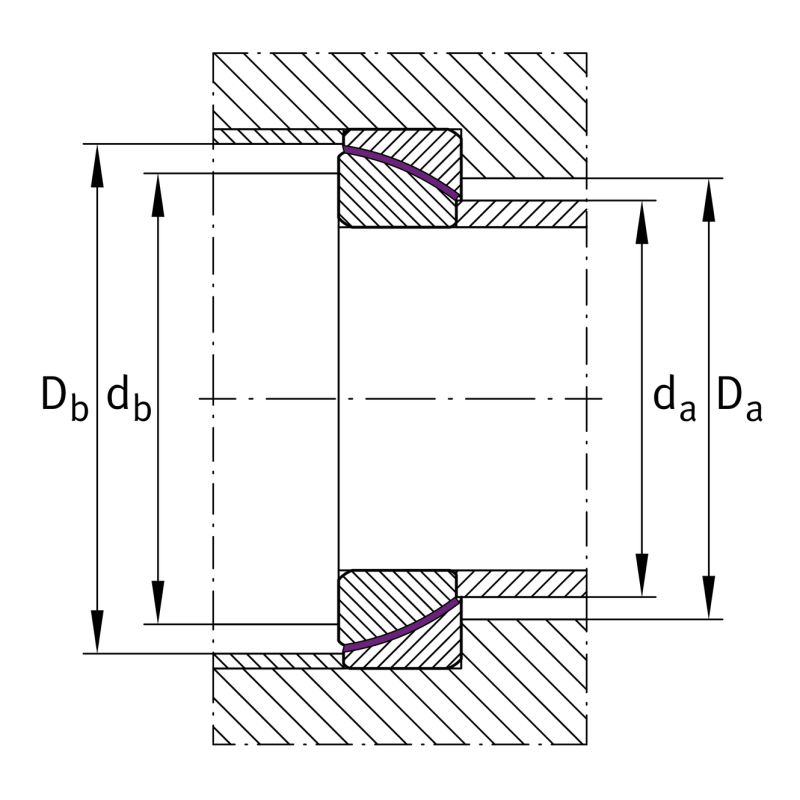

| Connection measure Inner ring | da max | 67 | mm |
| Connection diameter | Db min | 75 | mm |
| Ball diameter | dK | 74 | mm |
| Plane Surface Spacing | s | 4 | mm |
| Bore diameter bearing, lower tolerance | dUT | -0.01 | mm |
| Height, upper tolerance | TOT | 0.25 | mm |
| Width inner ring, lower tolerance | BUT | -0.24 | mm |
| Width Outer ring | C | 19 | mm |
| Tilt angle | α | 1.60 | ° |
| Outside diameter, lower tolerance | Do UT | -0.02 | mm |
| Height, lower tolerance | TUT | -0.25 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | GAC50 F (SKF) |
| Elges | GE50SW |
