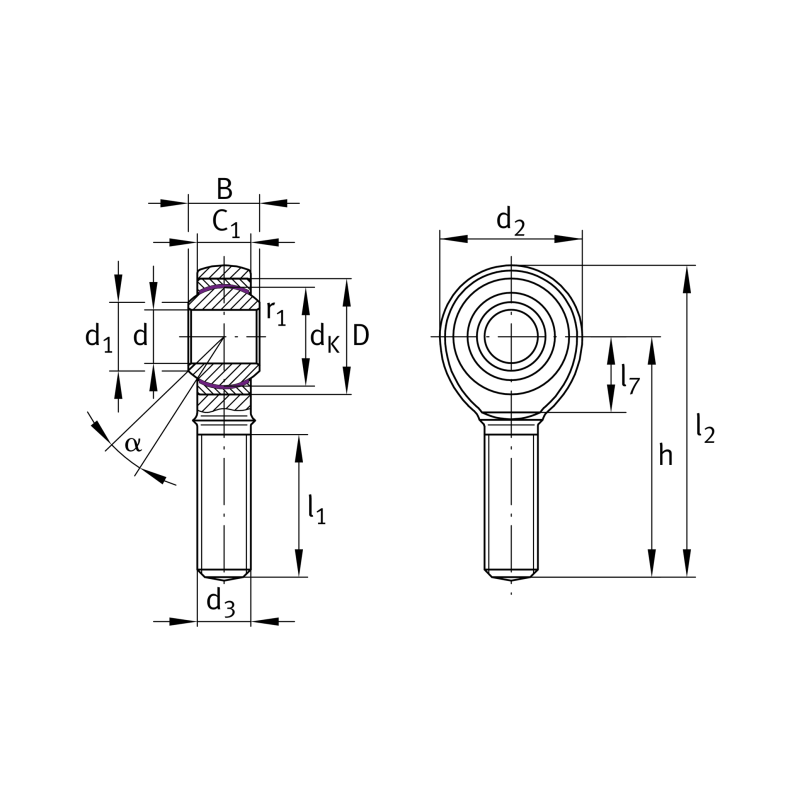

| Bore diameter bearing | d | 6 | mm |
| Outside diameter bearing | D | 16 | mm |
| Width inner ring | B | 9 | mm |
| Basic static load rating, radial | C0r | 6,930 |
| Outer eye diameter | d2 | 20 | mm |
| Total length external thread rod | l2 | 46 | mm |
| Basic dynamic load rating, radial | Cr | 7,750 |
| Edge Spacing | r1smin | 0.30 | mm |
| Ball diameter | dK | 12.70 | mm |
| Thread size | d3 | M6 | |
| Width of the rod end | C1 | 6.75 | mm |
| Thread length external thread | l1 | 21 | mm |
| Bore diameter bearing, tolerance | dT | H7 | |
| Width inner ring, lower tolerance | BUT | -0.12 | mm |
| Outer flange diameter inner ring | d1 | 8.90 | mm |
| Shank Length External thread rod | h | 36 | mm |
| Tilt angle | α | 13 | ° |
| Radial Clearance | Gr | 0 - 0,035 | |
| Bore diameter bearing, upper tolerance | dOT | 0.01 | mm |
| Manufacturer | Part Number |
|---|---|
| Askubal | KAL6-D |
| SKF | SALKAB6T |
| Durbal | BEM06-20-502 (DURBAL) |
| SKF | SALKB6 F (SKF) |
