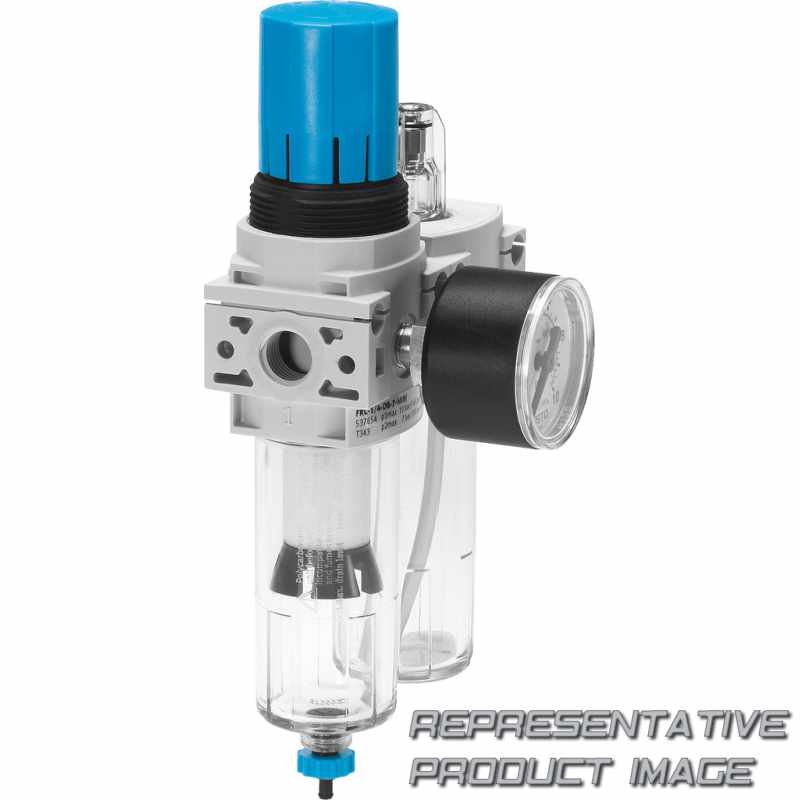

FESTO 537658 service unit

Name: 537658 FESTO
Brand: FESTO
SKU: 675851-en-gbp
Price: 112.1 GBP
Availability: SoldOut

FRC-1/4-DB-7-5M-MINI

£112.10

Limited stock only available on quotation

Specifications

Grade of filtration [μm] (5M)	5 µm
Size (MINI)	Grid dimension 40 mm (without connecting plates)
Condensate drain	Manually rotating

Product weight		300 g
Oil viscosity		ISO VG 32
Air purity class at output		Compressed air to ISO 8573-1:2010 [6:8:-] Inert gases
Approved oils		Festo special oil in 1 litre containers Order code: 152 811 OFSW-32 ARAL Vitam GF 32 BP Energol HLP 32 ESSO Nuto H 32 MOBIL DTE 24 SHELL Tellus Oil DO 32 Range of viscosity 32 mm²/s at 40°C Viscosity range 32 mm2/s (cSt) at 40°C
Standard nominal flow rate		≥ 550 l/min
Pressure regulation range		0,5 bar ... 7 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Controller function		With secondary venting With return flow function
Design		Filter/Closed-loop controller/lubricator
Mounting position		Vertical +/-5°
Series		DB
Size		Mini
Material housing		PA-reinforced
Material rotary knob		POM
Pneumatic connection, port 2		G1/4
Pressure gauge connection		G1/8

Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases
Max. pressure hysteresis		0,5 bar
Operating pressure		1,5 bar ... 10 bar
Symbol		00991761
Grade of filtration		5 µm
Condensate drain		Manually rotating
Actuator lock		Rotary knob with detent
Width		88 mm
Material bowl		PC
Material filter		PE
Material seals		NBR
Pneumatic connection, port 1		G1/4
Type of mounting		In-line installation With through-hole Via mounting bracket Either:
