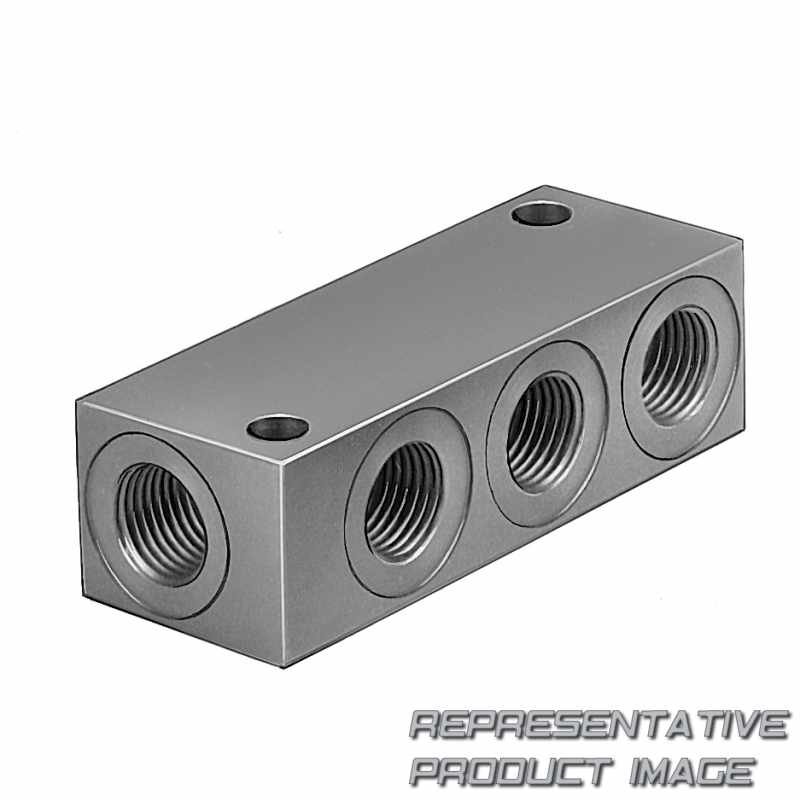

FESTO 6701 distributor block

Name: 6701 FESTO
Brand: FESTO
SKU: 678640-en-gbp
Price: 10.56 GBP
Availability: InStock

FR-4-1/8-B

£10.56

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Mounting Position	optional
Pneumatic connection	Female thread G1/8

Weight	25g

Material housing		Die-cast aluminium
Pneumatic connection, port 2		Female thread G1/8
Number of supply lines		1
Product weight		25 g
Corrosion resistance class CRC		0 - No corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Mounting position		optional

Note on materials		RoHS-compliant
Pneumatic connection, port 1		Female thread G1/8
Number of outputs		3
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure complete temperature range		0 bar ... 16 bar
Nominal size		8,6 mm
