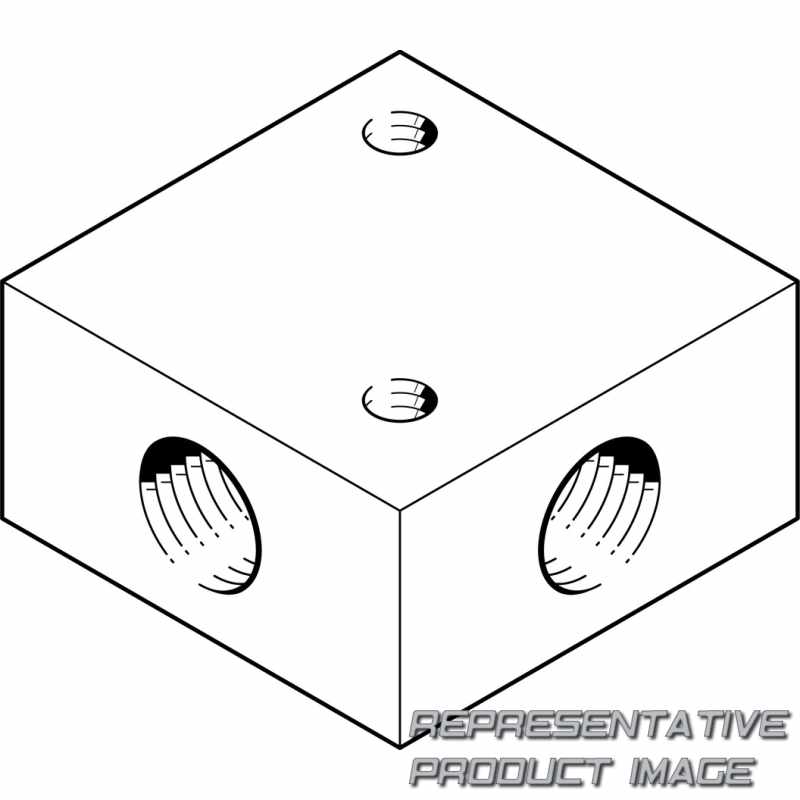

FESTO 2960 distributor block

Name: 2960 FESTO
Brand: FESTO
SKU: 691637-en-gbp
Price: 19.24 GBP
Availability: InStock

FR-4-1/4

£19.24

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Mounting Position	optional
Pneumatic connection	Female thread G1/4

Weight	68g

Material housing		Aluminium Anodised
Pneumatic connection, port 2		Female thread G1/4
Number of supply lines		1
Product weight		68 g
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Mounting position		optional

Note on materials		RoHS-compliant
Pneumatic connection, port 1		Female thread G1/4
Number of outputs		3
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure complete temperature range		0 bar ... 16 bar
Nominal size		11,5 mm
