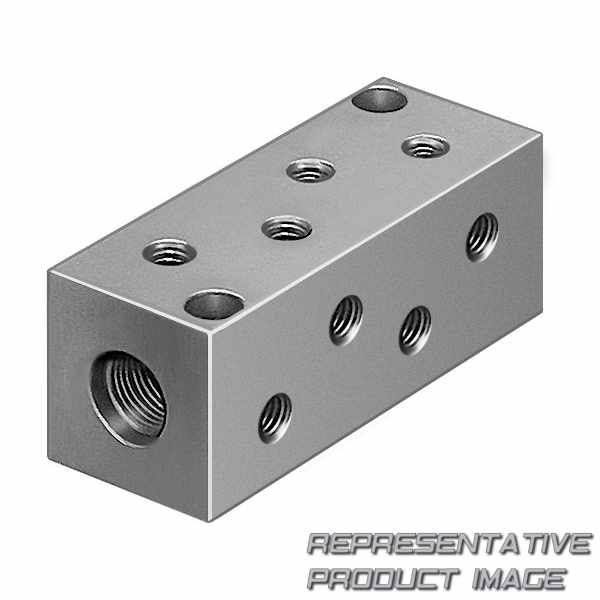

FESTO 4525 distributor block

Name: 4525 FESTO
Brand: FESTO
SKU: 666118-en-gbp
Price: 39.48 GBP
Availability: InStock

FR-12-M5

£39.48

3 pcs. with 1 to 3 days delivery to United States

Specifications

Mounting Position	optional
Pneumatic connection	Female thread G1/8

Weight	40g

Material housing		Aluminium Anodised
Pneumatic connection, port 2		Female thread M5
Number of supply lines		1
Product weight		40 g
Nominal torque		3,5 Nm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Mounting position		optional

Note on materials		RoHS-compliant
Pneumatic connection, port 1		Female thread G1/8
Number of outputs		12
Tolerance for nominal tightening torque		± 20%
Ambient temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure complete temperature range		0 bar ... 16 bar
Nominal size		4,1 mm
