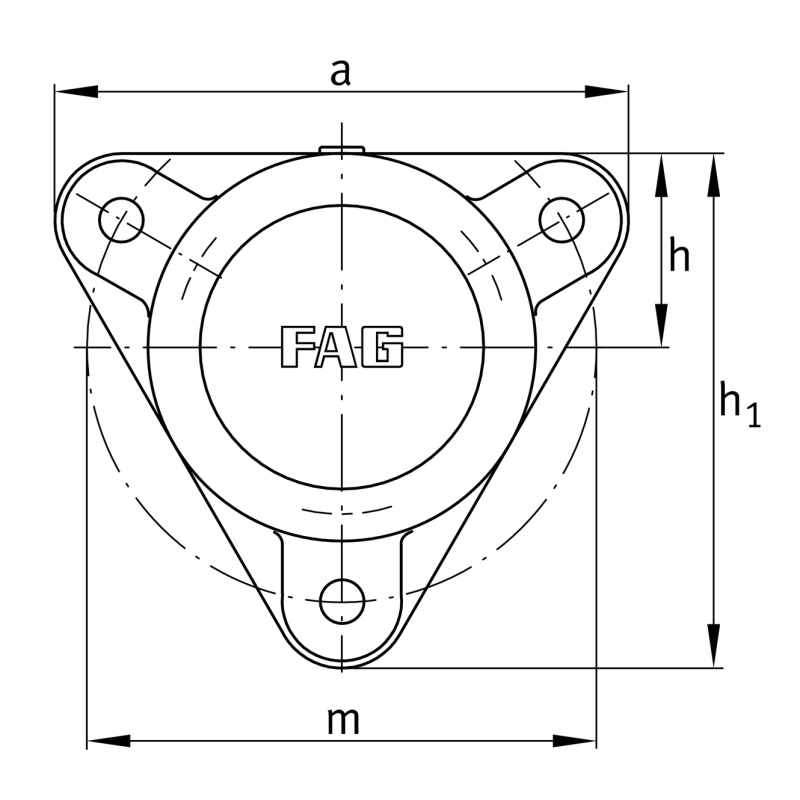

| Shaft diameter | d | 25 | mm |
| Height flange | h1 | 117 | mm |
| number of fastening holes | 3 |
| Flange width | a | 130 | mm |
| Total width with cover | g2 | 55 | mm |
| connection thread lubrication | M10x1 | ||
| Outside diameter bearing | D | 62 | mm |
| Distance shaft axis | h | 44 | mm |
| Size of fixing screws | s | M10 |
| Thickness of flange | c | 12 | mm |
| distance flange to bearing seat | g4 | 16 | mm |
| pich circle diameter fixing holes | m | 116 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | FNL506 A (SKF) |
